Manual Stages – Các cụm chuyển động bằng tay
Manual Stages - Các cụm chuyển động bằng tay
X-Axis
Z-Axis
XY-Axis

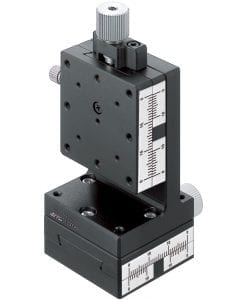

XZ-Axis

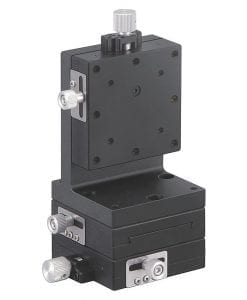

XYZ-Axis
Rotary
Goniometer
Stages with arc center located on central vertical line on the stage top which are intended for tilt angle adjustment, are standard in accuracy specifications and are reasonably priced
Tilt
[Features]
· 2 axes inclined stage with different feeding methods.
· The ball located between the upper stage and base is the supporting point for the slope.
· Inexpensive manual screw type and fine-adjustment micrometer type are available.
· Can be widely used for applications requiring the positioning of cameras, sensors, and other items.

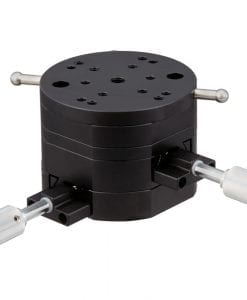

Multi-Axis
Rods, Stands, Cross Clamps
Micrometer Heads, Feed Screw
Base
Brackets for Manual Stage
A bracket for automatic stages. Use when you wish to use an automatic stage in a vertical position.

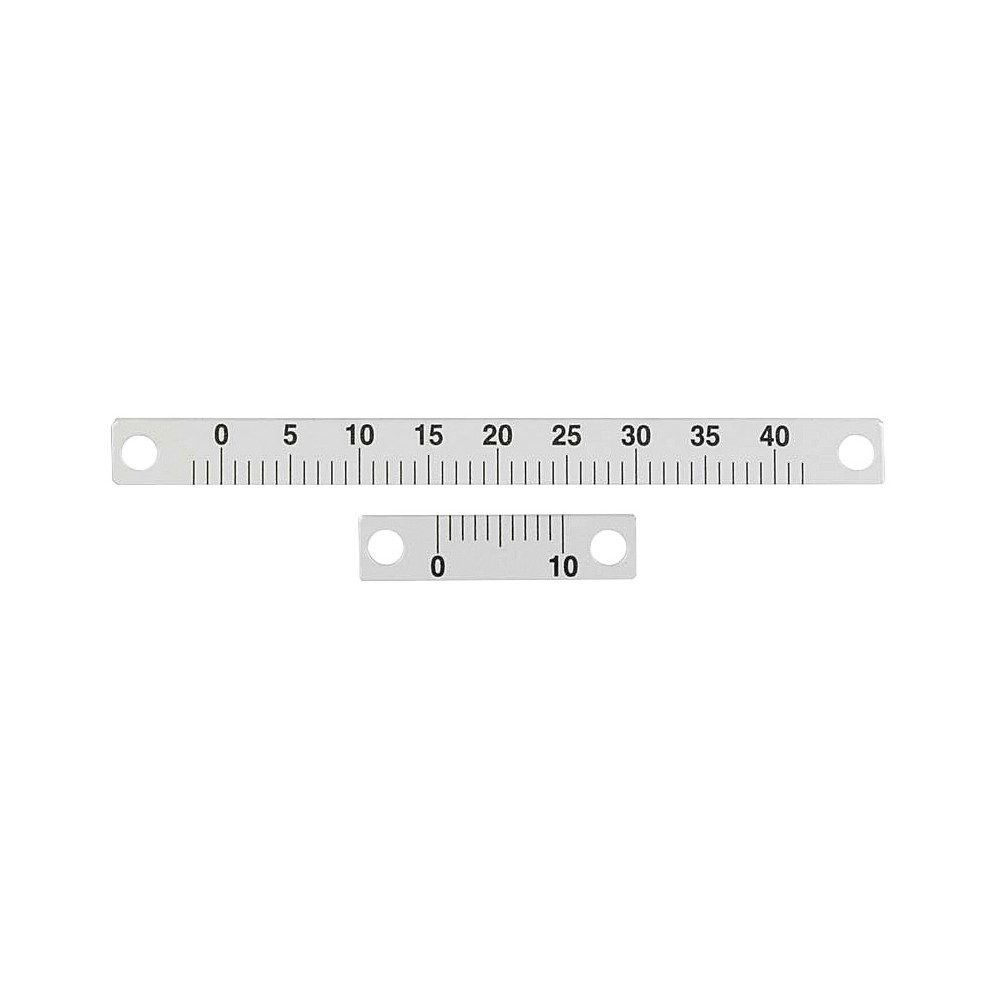

Scales for Manual Stage
Attraction Plates for Stage
Made of stainless steel with upper / lower surfaces finished by polishing
[Features]
· Adapter which fixes a sample in place via suction force.
· Made of stainless steel with both the upper / lower surfaces are finished by polishing.
· Fitting for a urethane hose with an outer diameter of φ 6 mm and an inner diameter of φ 4 mm is included.
· We also take special orders for non-standard products.

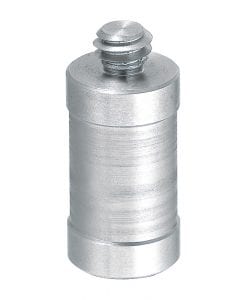

Mounting Accessories for CCD Camera
