Rod End Bearings, Spherical Bearings - Trục gắn ổ lăn, ổ lăn (bạc đạn) cầu

Drive support (rod tip bracket) ball joint

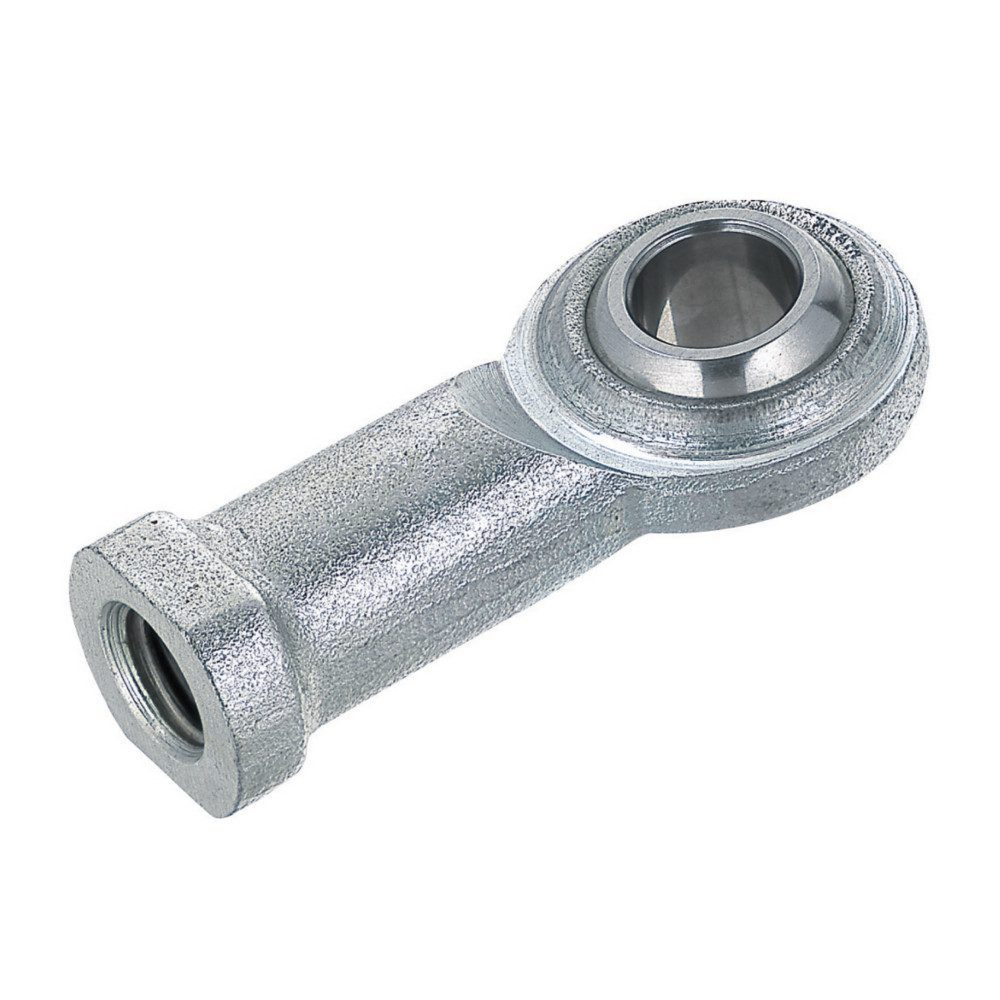

Rod End Bearings – Standard L Short Type

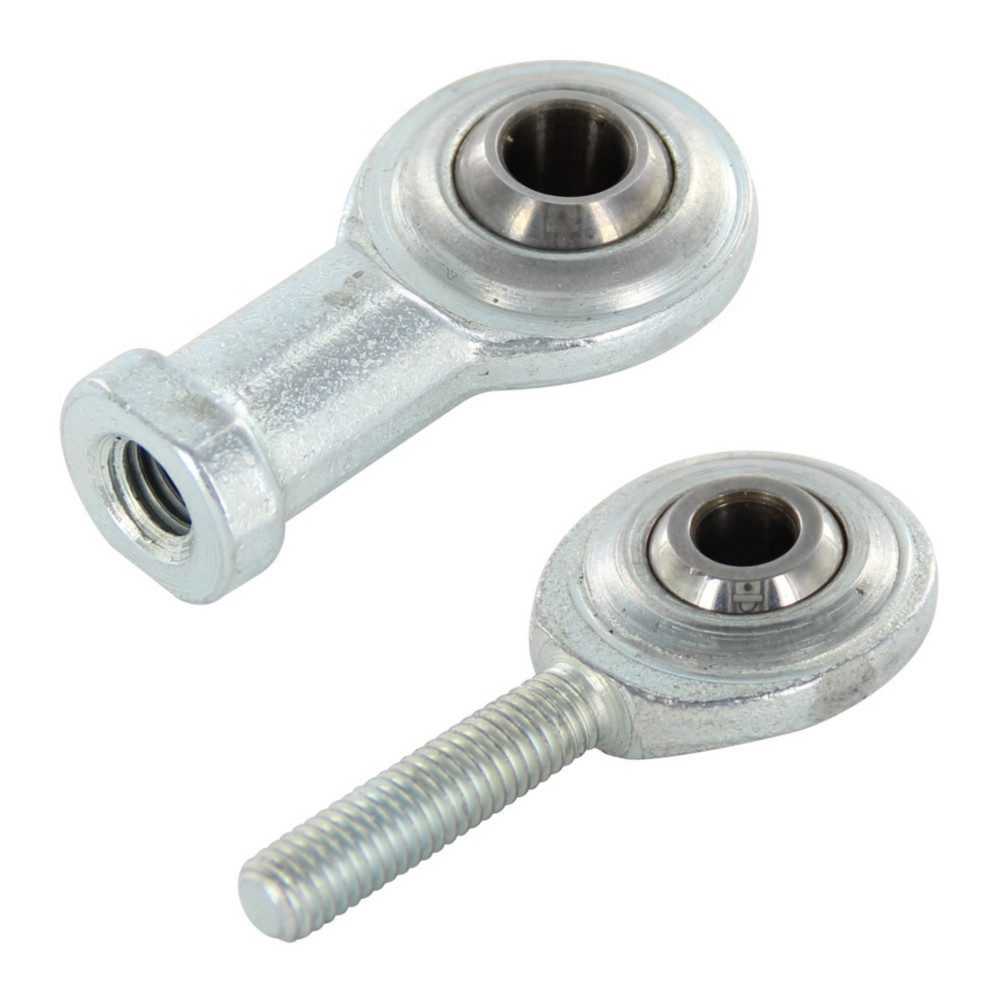

C-VALUE Rod End Bearings – Threaded / Tapped

Rod End Bearings – Link Ball L Type

Spherical Bearing – Standard Type

Link Ball Holder Part Male Screw RBI Type

Load end female screw type PHS

Highly rigid with superior abrasion and corrosion resistance.
The correct amount of lubricant can be supplied to the sliding surface via the grease nipple attached to the holder.

[Features] · Lubrication: Lubricate before use. There is a lubrication hole and oil groove on the holder, so it can be lubricated via the grease nipple.
· Left-hand female thread identification: For left-hand female threads, the letter “L” is added. “L” is marked on the holder of the product.

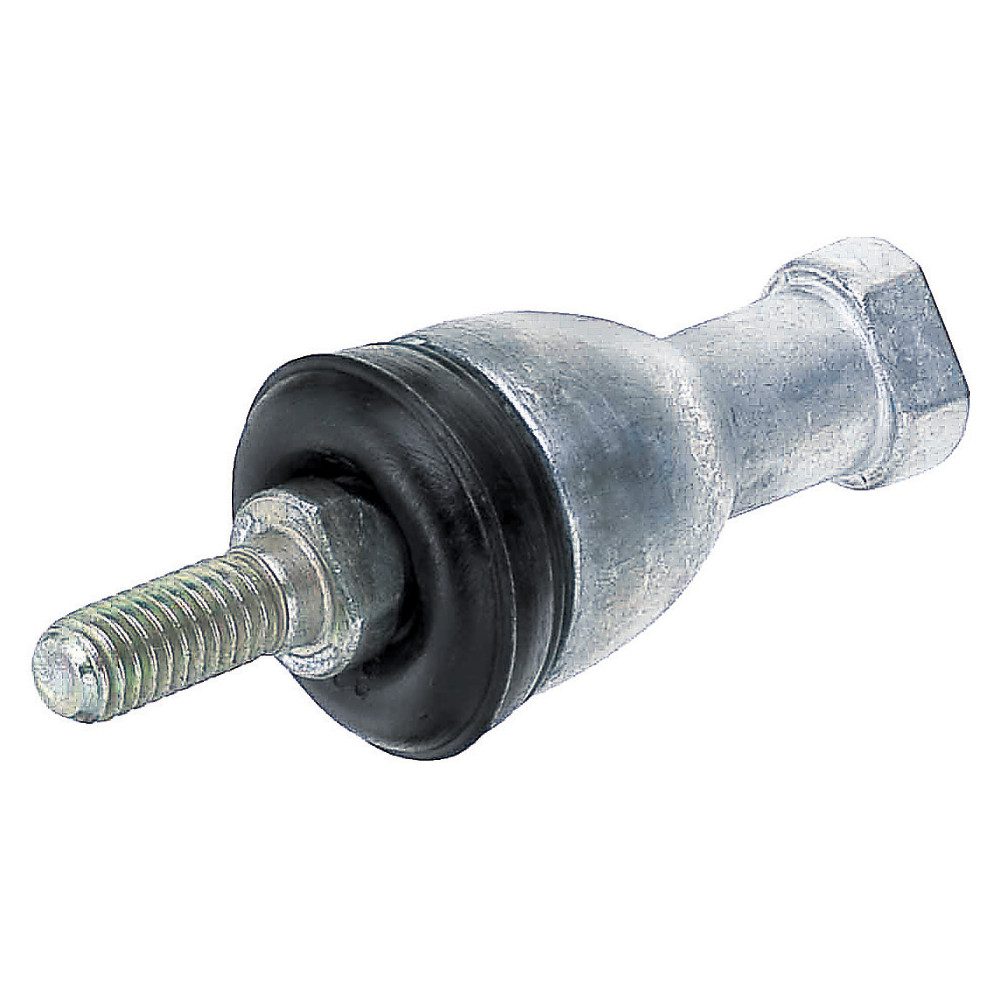

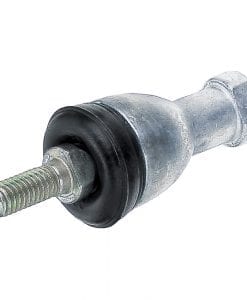

Rod End Bearings – Link Ball Straight Type

Rod End Bearing, Link Bowl L Type [RTLBL]

A link ball L type rod end bearing. SB is a Taiwanese manufacturer that was established in 1989. Obtained ISO9001: 2000 certification in 2006 and continues to implement world-class quality standards. Sells products to companies all over the world and has a high share of the Asian, European, and North American markets. MISUMI-VONA supplies rod end bearings.

Rod End With Male Screw Type (Oil Free) NOS-T Type

TRUSCO Rod End Lubricated Type Female Thread【1-2 Pieces Per Package】

[Features] · Excellent abrasion and corrosion resistance with superior rigidity
· Lubricant can be supplied to the sliding surface via a grease nipple on the body.

[Applications] · Various transport machinery parts
· Various manufacturing machinery parts
· FA equipment.
·
Packaging machinery parts·
Textile machinery parts·
Agricultural machinery parts· Robot parts.

Link BallHolder Part Male ScrewBL Type

Rod End Internal-Threaded Type PHS Series

(Features)
Using a high precision steel bearing as the inner ring, a special copper alloy ring is inserted into the carbon steel holder structure or outer ring, providing smooth and wear-resistant self alignment, rotation and oscillating movement.

Drive machine cylinder load end CRE series

11 types are available by thread size. Compatible with ø6 to 100 air cylinders.

[Features] · Backs up cylinder function with smooth link motion.
· 11 types are available by thread size.
· Compatible with ø6 to 100 air cylinders.
· This model uses a fluororesin liner, making it oil free and maintenance-free

Rod end screw type (oil free) NHS-T form

An oil free type rod end that uses self-lubricating synthetic plastic formed between the steel holder and the spherical inner ring.
The gap on the sliding surface is minimized, allowing accurate link motion to be achieved.

[Features] · NHS-T Type (oil free type)

Spherical Bearing PB Type

Rod End Bearing – Left female Screw – Metal Type – Four Pieces – PRL

Also referred to as “Insert type,” the construction features two insert pieces that are press-fitted in the body head end face from both sides. Assembly of the 4 piece rod end bearing is simple and economical, as it does not require spherical bearings like the 3 piece rod end. The body is made from S48C equivalent, providing relatively high tensile strength of 568N/mm┣sup┫2┣/sup┫ and a copper alloy insert offers resistance to seizure. This rod end bearing is widely used for construction and general industrial machinery.

Rod end bearing, Left male screw, Mold type, Mineron TN RBML

A self-lubricating rod end with a plastic injection molded liner between the ball and race, or ball and body. Unlike Teflon type liners, this liner requires no woven fabrics or bonding processes which means that it can be manufactured at a relatively low cost and makes it perfect for mass production. The rod end can be used without lubrication. It is maintenance free, exhibits excellent wear resistance characteristics, and offers greater durability against dynamic loads than a general metal type rod end. It exhibits superb characteristics especially for fine motions under unidirectional load.

Spherical Bearing Holder Sets – Standard Type

Spherical Bearing SRJ

· The movable part has less frictional resistance due to its rolling joint structure under preload, achieving high precision with zero clearance.
· Higher rigidity and smaller size than other joints combining roller bearings with 3 degrees of freedom.
· Ideal for achieving high precision, high rigidity and downsizing of parallel mechanism.
· Achieved using HEPHAIST’s ultra-precision spherical inner surface machining technology

Pillow Ball Insert-Type PBI Series

(Features)
Using a high precision steel bearing as the inner ring, a special copper alloy ring is inserted into the carbon steel holder structure or outer ring, providing smooth and wear-resistant self alignment, rotation and oscillating movement.
