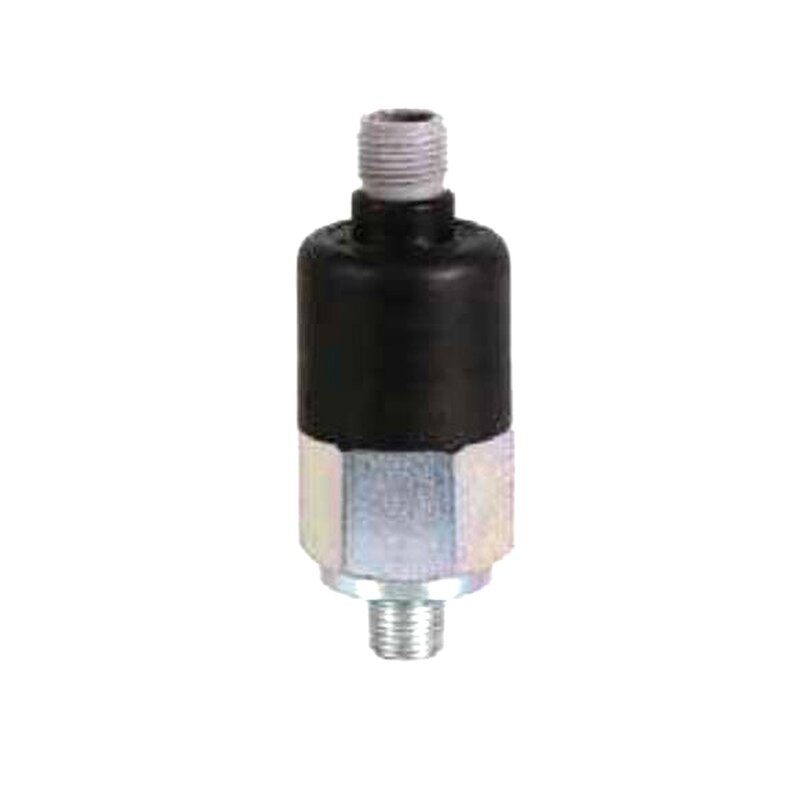

Cảm biến áp suất SKF DSD3-A0200N-NOA13 – SKF Pressure Switch DSD3-A0200N-NOA13

Specification:

• Medium: Oil and fluid grease (NLGI class: 000, 00, 0)

• Housing material: steel, galvanized

• Contact type: normally open

• Max. Switching voltage: 36 volts DC (0.5 amps)

• Max. Contact load: 18 VA

• Max. Switching frequency: 5 (200) cycles / min.

• Nominal switching pressure: 20 bar

• Temperature: -10 to + 100 ° C

• Connection: M10x1 taper

• Electrical connection: round plug connector M12 × 1

• Installation position: Any

• Protection class, housing: IP 65

• Degree of protection, terminal: IP 00

• Diaphragm: NBR

• Contact material: silver contacts

• Item weight: 0.07 kg

• Dimensions (length × width × height): 29.00 x 71.00 x 30.00cm
