Linear bushings flange type – Ống trượt bi loại có vành
Flanged Linear Bushings – Single, Opposite Counterbored Hole
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Motion | Linear | Lubrication Type | Not Provided | Ball Recirculating Type | Single |
Accuracy | High Grade | Types | Standard Flange | Length | Single |
Flanged Linear Bushings - Single, Opposite Counterbored Hole

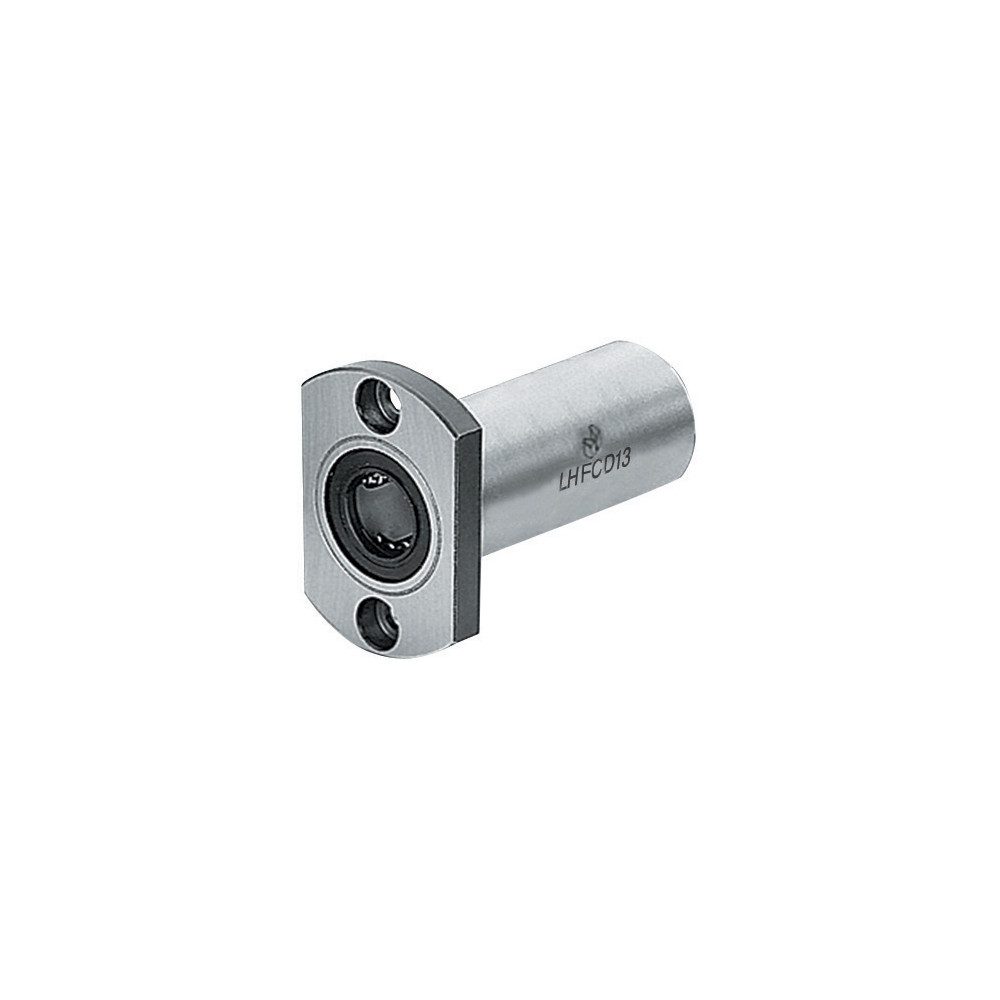

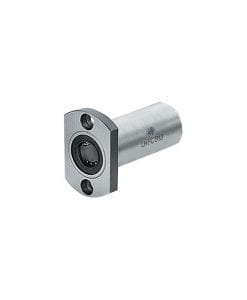

Flanged Linear Bushings – Medium Type
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Motion | Linear | Lubrication Type | Not Provided |
Ball Recirculating Type | Double | Accuracy | High Grade | Types | Standard Flange |
Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal | Counterbored Hole | Standard |
Flanged Linear Bushings - Medium Type
Flanged Linear Bushings – Double, Opposite Counterbored Hole
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Motion | Linear | Lubrication Type | Not Provided | Ball Recirculating Type | Double |
Accuracy | High Grade | Types | Standard Flange |
Flanged Linear Bushings - Single, Opposite Counterbored Hole
Linear Bushing LMK-L Type
Type with LMF-L type flange having flats at 4 locations. Due to a lower core height, this type is more suitable for compact designs than the round flange type.
Type | Flange | Flange Type | Standard Flange | Outer Cylinder Material | Iron |
---|---|---|---|---|---|
Outer Cylinder Surface Treatment | No | Motion | Linear Motion | Lubrication Type | No |
Ball Recirculating Type | Long | Accuracy | High Grade | Types | Flanged End Face |
Length | Long | Flange Shape | Square type | The material of a ball | Iron |
W/ or w/o metal retainer | No |
Linear Bush LMK Type
Type with LMF type flange having flats at 4 locations. Can be used in compact designs since the core height is lower than with the round flange type.
Type | Flange | Flange Type | Standard Flange | Outer Cylinder Material | Iron |
---|---|---|---|---|---|
Outer Cylinder Surface Treatment | No | Motion | Linear Motion | Lubrication Type | No |
Ball Recirculating Type | Single | Accuracy | High Grade | Types | Flanged End Face |
Length | Standard | Flange Shape | Square type | The material of a ball | Iron |
W/ or w/o metal retainer | No |
Linear Bushing LMF-L Type
The outer cylinder of the standard-type linear bushing and the flange are integrated and mounting is easily achieved by bolting directly to the housing.
With 2 standard retainers embedded, this product is optimal for sites subject to moment loads.
Type | Flange | Outer Cylinder Material | Iron | Outer Cylinder Surface Treatment | No |
---|---|---|---|---|---|
Motion | Linear Motion | Lubrication Type | No | Ball Recirculating Type | Long |
Accuracy | High Grade | Types | Flanged End Face | Length | Long |
Flange Shape | Round shape | The material of a ball | Iron | W/ or w/o metal retainer | No |
Linear Bushing LMF Type
The outer cylinder of the standard-type linear bushing and the flange are integrated and fitting is easily achieved by bolting directly to the housing.
Type | Flange | Outer Cylinder Material | Iron | Outer Cylinder Surface Treatment | No |
---|---|---|---|---|---|
Motion | Linear Motion | Lubrication Type | No | Ball Recirculating Type | Single |
Accuracy | High Grade | Types | Flanged End Face | Length | Standard |
Flange Shape | Round shape | The material of a ball | Iron | W/ or w/o metal retainer | No |
Flanged Linear Bushings – Single, Pilot
Type | Flange | Style | Standard | Flange Type | Pilot Flanged |
---|---|---|---|---|---|
Motion | Linear | Lubrication Type | Not Provided | Ball Recirculating Type | Single |
Accuracy | High Grade | Types | Pilot Flanged | Length | Single |
Seal | With Seal | Counterbored Hole | Standard |
Flanged Linear Bushings - Single, Pilot
Flanged Linear Bushing – Center Flanged Double
Type | Flange | Style | Standard | Flange Type | Center Flanged |
---|---|---|---|---|---|
Motion | Linear | Lubrication Type | Not Provided | Ball Recirculating Type | Double |
Accuracy | High Grade | Types | Center Flanged | Seal | With Seal |
Counterbored Hole | Standard |
Flanged Linear Bushing - Center Flanged Double
Flanged Linear Bushings/Single Type/Cost Efficient Product
Consider adopting C-VALUE products for Medium Accuracy / Medium/Low Load / Medium/Low Frequency applications. Easy to assemble with bolt-on flanges. Overall Length: Length of Single Type.
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear |
Lubrication Type | Not Provided | Ball Recirculating Type | Single | Accuracy | High Grade |
Types | Standard Flange | Length | Single | Ball Material | SUJ2 Equivalent |
Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal | Counterbored Hole | Standard |
Greased filled | Not Provided |
Flanged Linear Bushings-Single Type-Cost Efficient Product
Flanged Linear Bushings – Long / Long, Pilot
Type | Flange | Style | Standard | Motion | Linear |
---|---|---|---|---|---|
Lubrication Type | Not Provided | Ball Recirculating Type | Double | Accuracy | High Grade |
Seal | With Seal | Counterbored Hole | Standard |
Flanged Linear Bushings - Long- Long, Pilot
Flanged Linear Bushings – Double, Pilot
Type | Flange | Style | Standard | Flange Type | Pilot Flanged |
---|---|---|---|---|---|
Motion | Linear | Lubrication Type | Not Provided | Ball Recirculating Type | Double |
Accuracy | High Grade | Seal | With Seal | Counterbored Hole | Standard |
Flanged Linear Bushings - Single, Pilot
Flanged Compact Type – Single
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Motion | Linear | Lubrication Type | Not Provided |
Ball Recirculating Type | Single | Accuracy | High Grade | Eccentricity(µm) | 12 |
Types | Standard Flange | Length | Single | Retainer Material | Plastic (Duracon M90 Equivalent) |
Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent | Counterbored Hole | Standard |
Linear Bushing LMH-L Type
Flange is oval-shaped. More suitable than the LMK-L type for compact designs due to lower core height.
With 2 standard retainers embedded, this product is optimal for sites subject to moment loads.
To lengthen the product life, the balls of the linear bushing are embedded in two races to support the load from the flats.
Type | Flange | Flange Type | Standard Flange | Outer Cylinder Material | Iron |
---|---|---|---|---|---|
Outer Cylinder Surface Treatment | No | Motion | Linear Motion | Lubrication Type | No |
Ball Recirculating Type | Long | Accuracy | High Grade | Types | Flanged End Face |
Length | Long | Flange Shape | Round-shaped, 2 Set Screw Flats | The material of a ball | Iron |
W/ or w/o metal retainer | No |

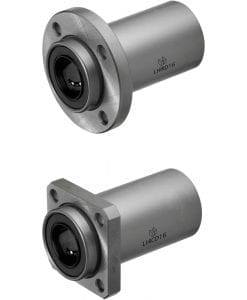

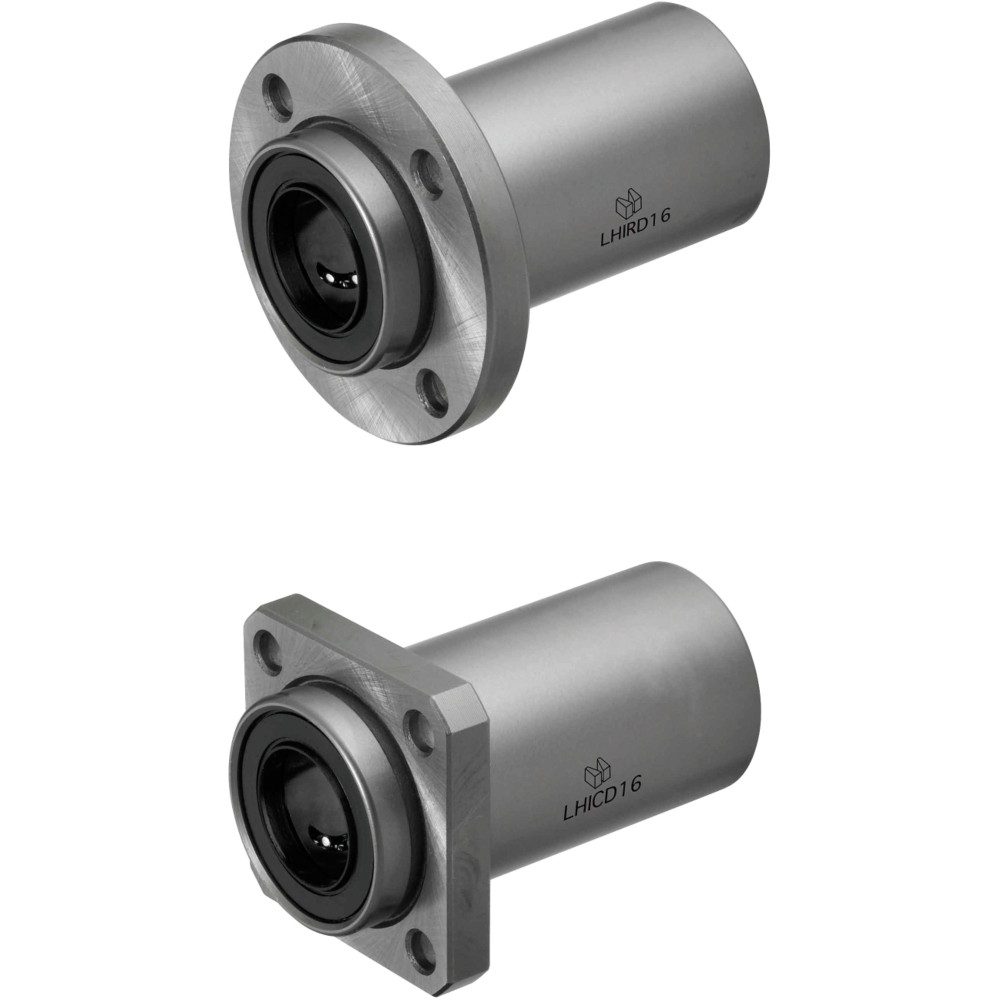

Flanged Linear Bushings – Medium, Pilot
Type | Flange | Style | Standard | Flange Type | Pilot Flanged |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear |
Lubrication Type | Not Provided | Ball Recirculating Type | Double | Accuracy | High Grade |
Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal |
Counterbored Hole | Standard |
Flanged Linear Bushings - Medium, Pilot

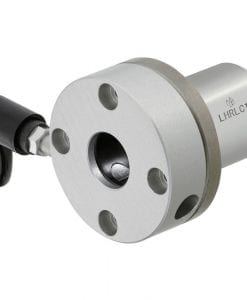

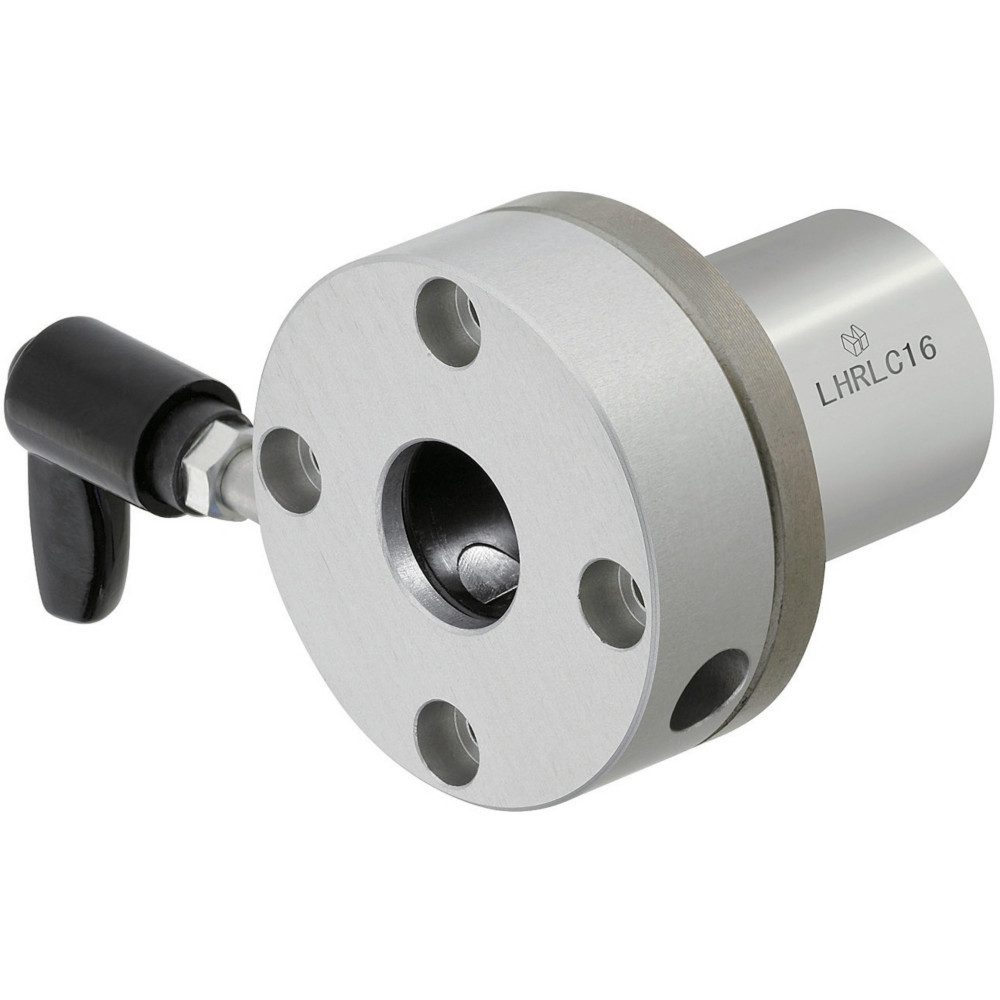

With Clamp Lever – Flanged, Single/Double, Right/Left Clamp Lever
Capable of rotary motion, finite linear motion, and the combination of both. Length: Single Type having its end flanged.
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear/Rotary |
Ball Material | SUJ2 Equivalent | Retainer Material | A5052S |

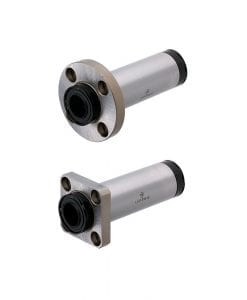

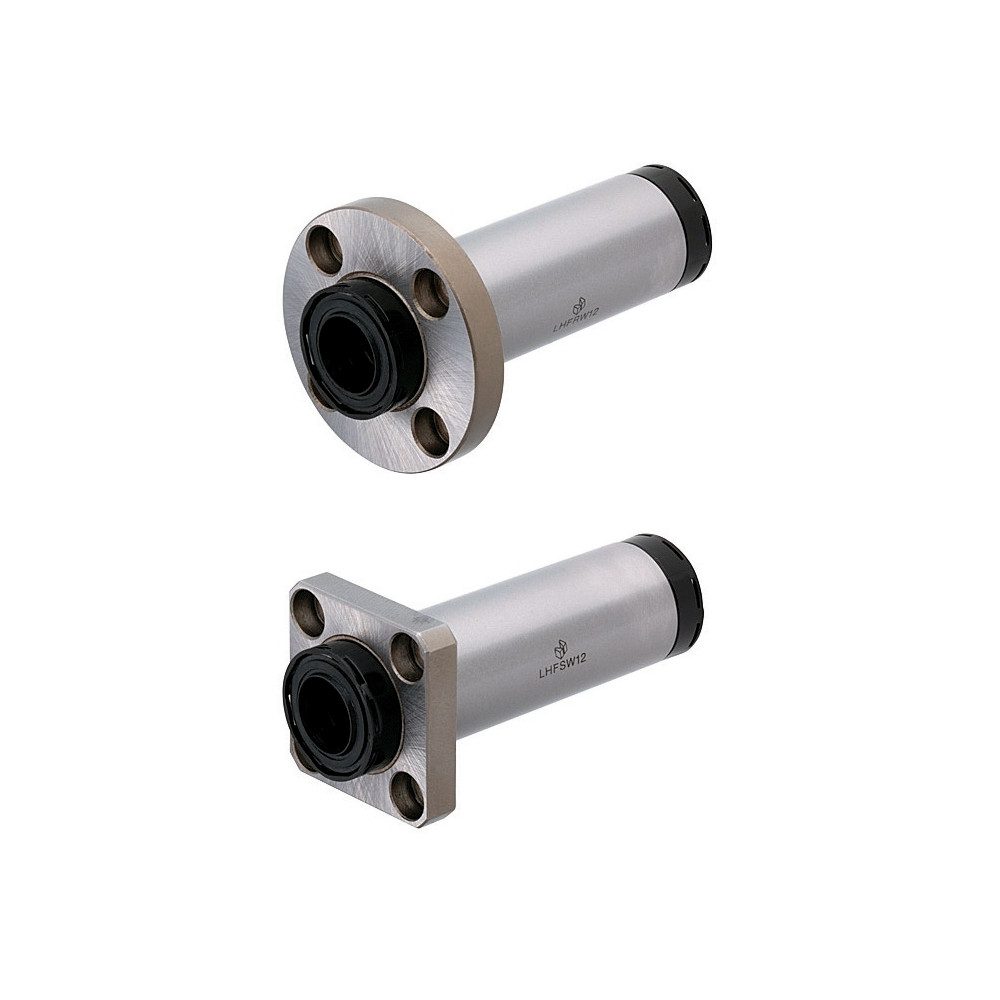

Linear Bushings with Lubrication Unit MX – Flanged Double
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Motion | Linear | Lubrication Type | With Lubrication Unit MX |
Ball Recirculating Type | Double | Accuracy | High Grade | Types | Standard Flange |
Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal | Counterbored Hole | Standard |
Greased filled | Lithium Soap Based |
Linear Bushings with Lubrication Unit MX - Flanged Double

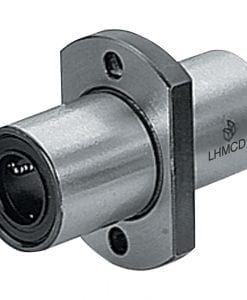

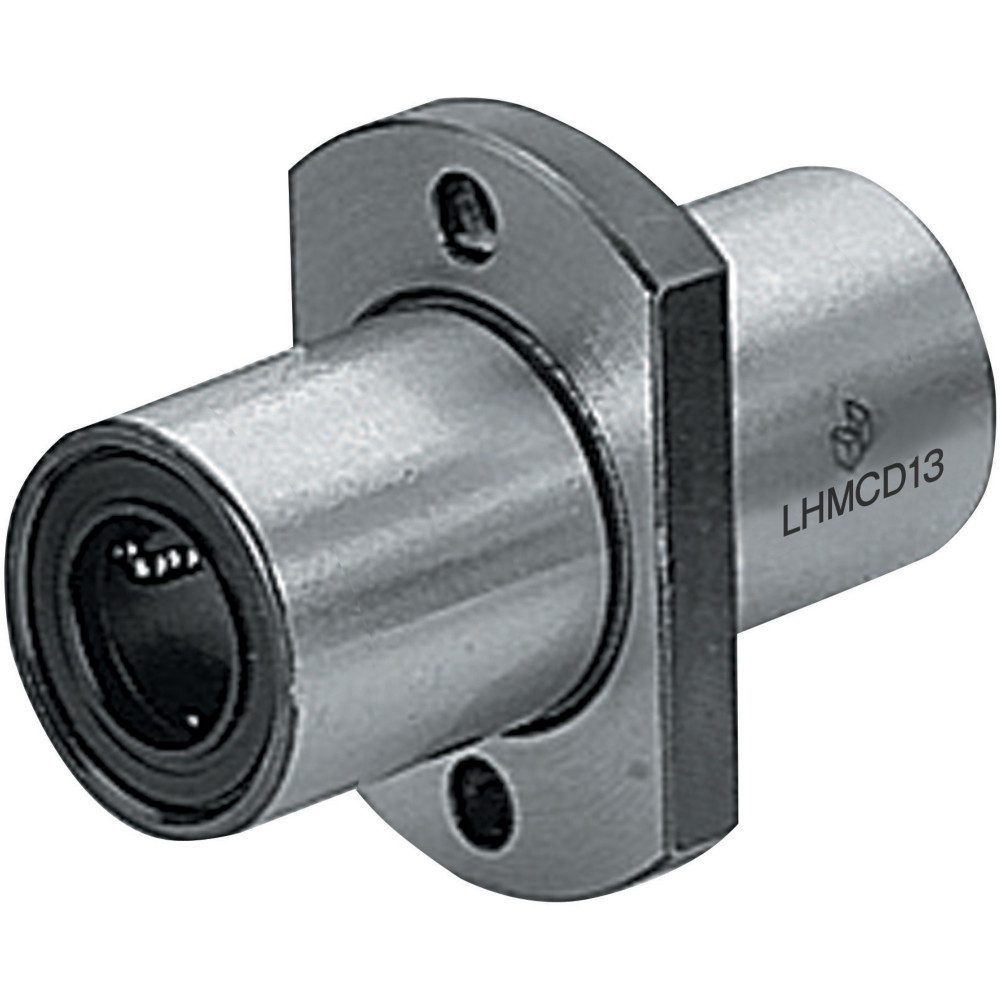

Flanged Linear Bushings – Medium, Center Flanged
Type | Flange | Style | Standard | Flange Type | Center Flanged |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear |
Lubrication Type | Not Provided | Ball Recirculating Type | Double | Accuracy | High Grade |
Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal |
Counterbored Hole | Standard |
Flanged Linear Bushings - Medium, Center Flanged

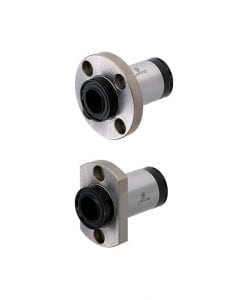

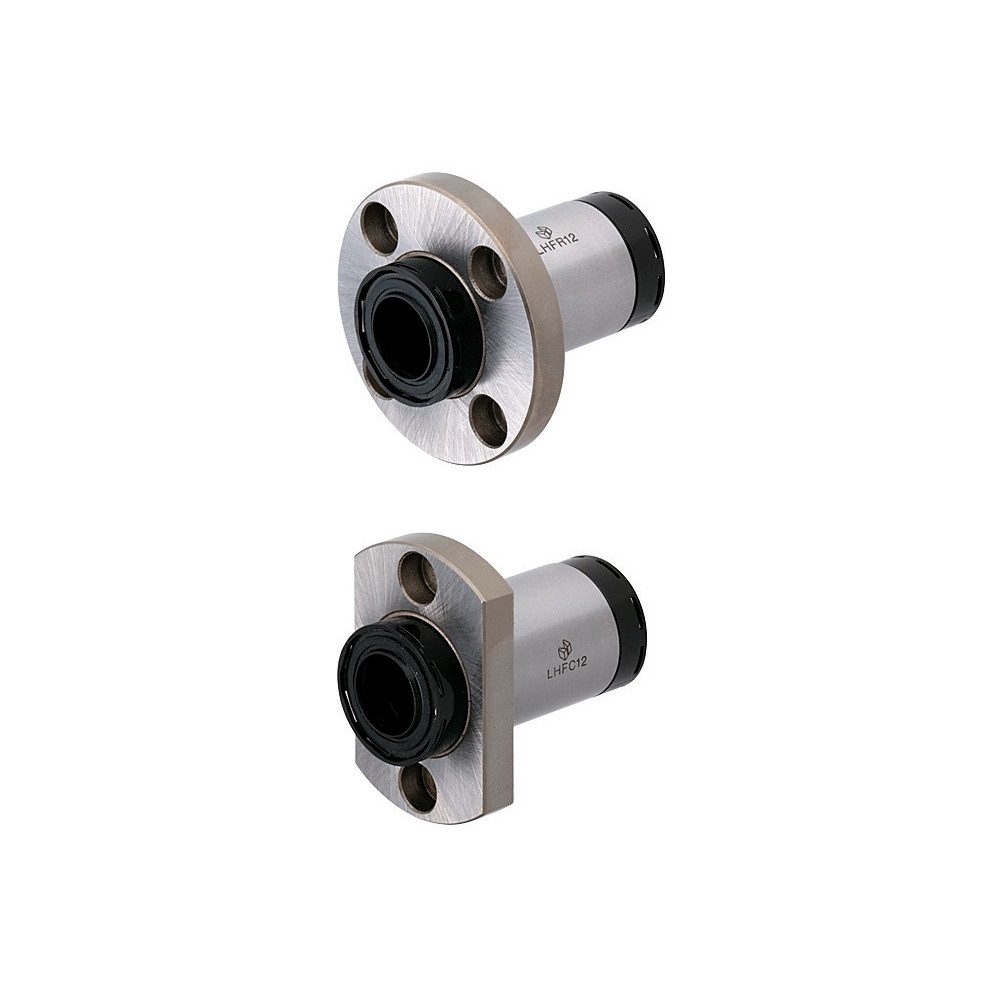

Linear Bushings with Lubrication Unit MX – Single / Double / Flanged Single
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Motion | Linear | Lubrication Type | With Lubrication Unit MX |
Ball Recirculating Type | Single | Accuracy | High Grade | Types | Standard Flange |
Length | Single | Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal |
Counterbored Hole | Standard | Greased filled | Lithium Soap Based |
Linear Bushings with Lubrication Unit MX - Single , Double , Flanged Single
Flanged Linear Bushings – Long / Long, Pilot
Type | Flange | Style | Standard | Flange Type | Pilot Flanged |
---|---|---|---|---|---|
Motion | Linear | Lubrication Type | Not Provided | Ball Recirculating Type | Double |
Accuracy | High Grade | Seal | With Seal | Counterbored Hole | Standard |
Flanged Linear Bushings - Long , Long, Pilot
Flanged Linear Bushings – Standard Type – Single Type – with Square Flange
Two face flange type for convenient mounting. A single type product. Suitable for use in standard applications. MYT is a manufacturer of linear parts based in China. MYT products are manufactured under a strict quality management system and have been adopted all over the world.
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | Bearing Steel | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear Motion |
Lubrication Type | No | Ball Recirculating Type | Single | Accuracy | Standard Grade |
Types | Flanged End Face | Length | Standard | Flange Shape | Square type |
The material of a ball | Bearing Steel | Seal | Available | W/ or w/o metal retainer | No |
Flanged Linear Bushings - Standard Type - Single Type - with Square Flange
Flanged Linear Bushing – Center Flange Type – Long Type – with Square Flange [LMYMKMLUU]
Brand-name products provided by MISUMI-VONA are carefully-selected from the products of Asian manufacturers and offered based on customers’ needs. Please select the right item for your individual usage environment. This manufacturer is a linear parts manufacturer based in China. MYT products are manufactured under a strict quality management system and have been adopted all over the world.
Type | Flange | Style | Standard | Flange Type | Center Flanged |
---|---|---|---|---|---|
Outer Cylinder Material | Bearing Steel | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear Motion |
Lubrication Type | No | Ball Recirculating Type | Long Type | Accuracy | Standard Grade |
Types | Flanged End Face | Length | Long | Flange Shape | Square type |
The material of a ball | Bearing Steel | Seal | Available | W/ or w/o metal retainer | No |
”Flanged
”]
With Clamp Lever – Flanged, Single/Double, Right/Left Clamp Lever
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | SUJ2 Equivalent | Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear |
Lubrication Type | Not Provided | Accuracy | High Grade | Types | Standard Flange |
Flange Shape | Compact Flange | Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) |
Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent | Counterbored Hole | Standard |
Greased filled | Not Provided |
With Clamp Lever - Flanged, Single-Double, Right-Left Clamp Lever
Linear Bushing – LMK-ML Type (Stainless Steel Type)
Type with LMF-L type flange having flats at 4 locations. Can be used in compact designs since the core height is lower than with the round flange type.
Type | Flange | Style | Standard Shape | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | Iron | Outer Cylinder Surface Treatment | No | Motion | Linear Motion |
Lubrication Type | No | Ball Recirculating Type | Long | Accuracy | High Grade |
Types | Flanged End Face | Length | Long | Flange Shape | Square type |
The material of a ball | Iron | W/ or w/o metal retainer | No |
Flanged Linear Bushings Long LFLKC-Shaped Center-Positioned Rectangular-Shaped Flange Oil Hole
· LFLKC: Standard type linear bearing
· MLFLKC: Rust-proof type, with high-level rust-proofing and reduced cost achieved through use of stainless steel.
· ULFLKC: Ultra-long lifetime (U ultra) type with high tolerance of moment loads and ultra-long lifetime that is 18.5 times the lifetime of the standard type.
· UMLFLKC: Ultra-long lifetime, (U ultra) rust-proof type.
Type | Flange | Style | Standard | Flange Type | Center Flanged |
---|---|---|---|---|---|
Outer Cylinder Material | Iron | Motion | Linear Motion | Lubrication Type | No |
Ball Recirculating Type | Double | Accuracy | High Grade | Types | With center flange |
Length | Long | Flange Shape | Square type flange | Dust-proof Seal | With double seal |
Linear Bush Flanged LFK-OH Type Single Square Flange Lubrication Hole
· LFK-OH: Standard type linear bearing with lubrication hole
· MLFK-OH: Rust-resistant type, with high-level rust-proofing and reduced cost achieved through use of stainless steel.
· ULFK-OH: Ultra-long lifetime (U ultra) type with high tolerance of moment loads and ultra-long lifetime that is 18.5 times the lifetime of the standard type.
· UMLFK-OH: Ultra-long lifetime, (U ultra) rust-proof type.
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | Iron | Motion | Linear Motion | Lubrication Type | No |
Ball Recirculating Type | Single | Accuracy | High Grade | Types | Flanged End Face |
Length | Standard | Flange Shape | Square type flange | Dust-proof Seal | With double seal |
Flanged linear bushing LFM shape (Eco series) single round flange
· LFM: Standard (ECO series) linear bearing, frequent-use type. Ideal for reducing costs.
· MLFM: Rust-resistant type (ECO series) “MLFM60 with vent”
Type | Flange | Style | Standard | Flange Type | Standard Flange |
---|---|---|---|---|---|
Outer Cylinder Material | Iron | Motion | Linear Motion | Lubrication Type | No |
Ball Recirculating Type | Single | Accuracy | High Grade | Types | Flanged End Face |
Length | Standard | Flange Shape | Round-shaped flange | Dust-proof Seal | With double seal |
Hãy là người đầu tiên nhận xét “Linear bushings flange type – Ống trượt bi loại có vành”
You must be logged in to post a review.
