Oil free bushings flanged type – Ống lót không dầu loại có vành

Oil free bushings flanged type – Ống lót không dầu loại có vành

Oil free bushings flanged type - Ống lót dầu loại có vành

Oil Free Bushings – Multi-Layer LF Bushings (Dry Bush) – Flanged

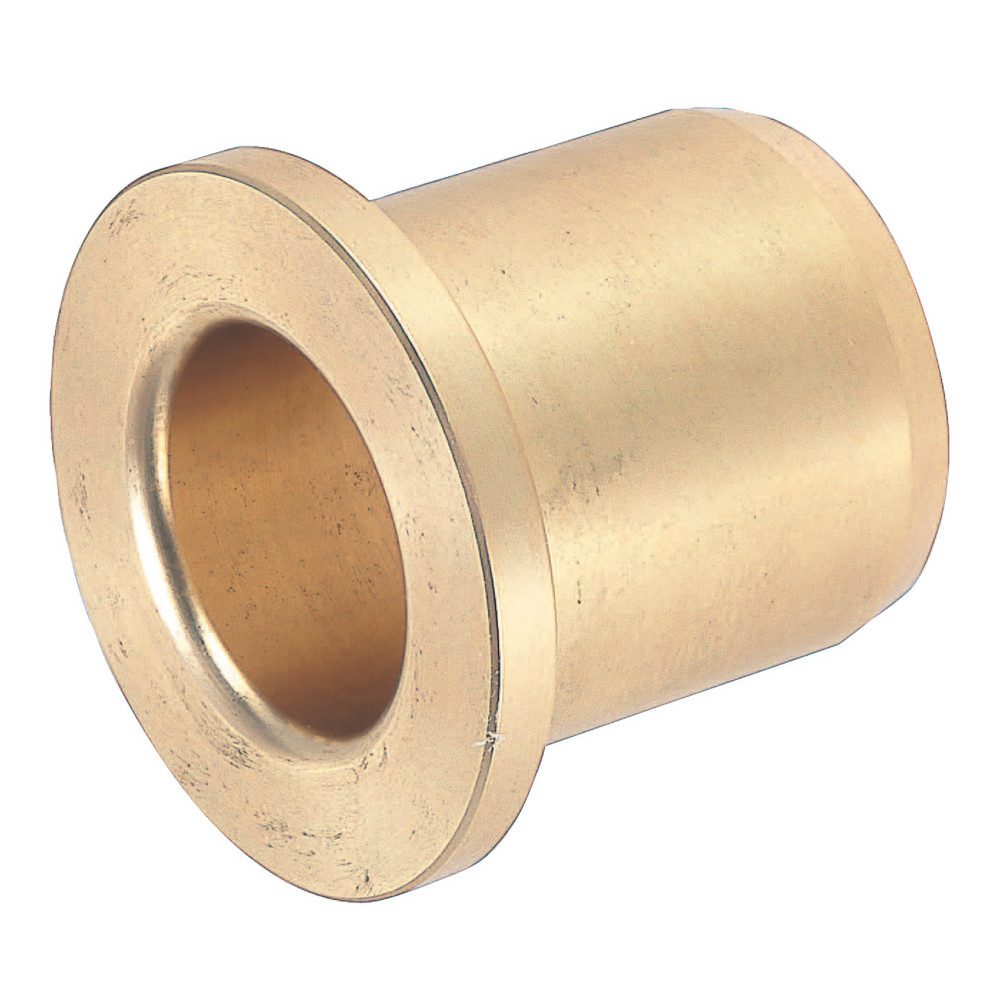

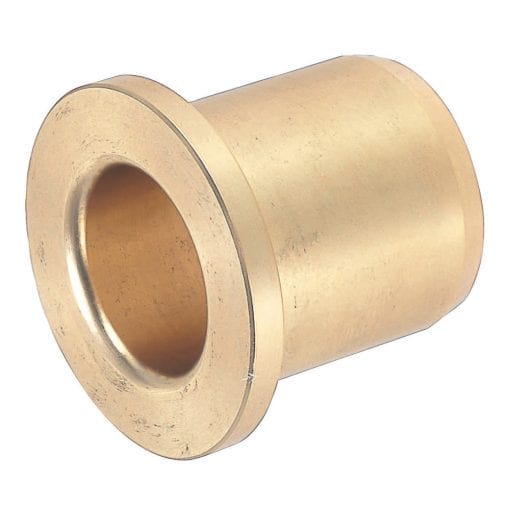

Oil Free Bushings – Bronze, Flanged

Oil Free Bushings – Flanged, Standard

Oil Free Bushings – Flanged (Polyacetal Resin)

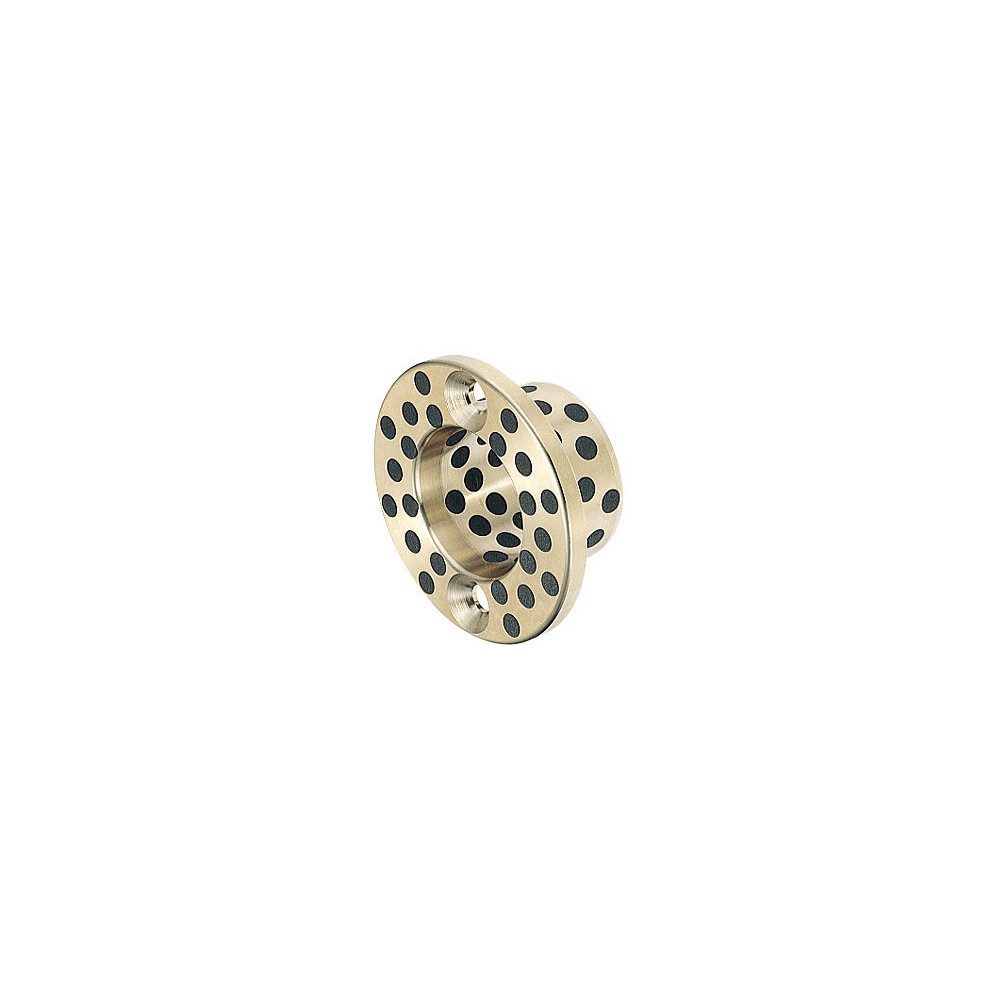

Oil Free Bushings – Thrust Type

Oil Free Bushings – Flanged (PTFE)

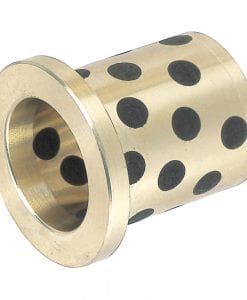

Oil Free Bushings – Copper Alloy, Flanged, Thin Wall

Oiles Drymet LF Flange Bushing (LFF)

Can be used without oil, has thin walls, and is lightweight, and allows for a more compact size.

Oil Free Bushings – Straight / Flanged

Iglidur X Flange Type Oil-Free Bushing

This material has the most outstanding chemical resistance, as well as heat resistance.
Completely lubricant/oil free, with superior wear resistance, and no need to worry about running out of oil.

Dydine Bushing with Flange DDK05 series

Compound bearing (flanged bushing type ) with low friction characteristics and that optimizes metal properties such as strength and dimensional stability.

[Features]
· The bearing surface has such a low coefficient of static and dynamic friction so that the surface runs smoothly without lubrication.
· So-called “StickSlip” does not occur.
· Also safe to use in oil.
· Can be used within a temperature range of -200°C to +280°C.
· Adaptable to operations under high-load, impact load, intermittent operation and reciprocating motion.
· Free from electrostatic induction (when installed, each bearing has an electrical resistance of 1 to 10 Ω per 1cm2).
· Bearing surface has superior chemical resistance. It is also not affected by solvents, such as petroleum and alcohol.
· Will not damage the surface of the engaging component.
· Extended surface life.
· Bearing is lightweight and thin (3 mm at its thickest), so it does not require much space. In other words, the design is more compact.
· Minimizes operating noise.

Iglidur J Flange Type Oil-Free Bushing

Low wear, low friction coefficient, low moisture absorbing material. Completely lubricant/oil free, with superior wear resistance, and no need to worry about running out of oil.

Oiles #500SP Flange Bushing (SPF)

Demonstrates high performance at high load and low speed movement positions.

Iglidur G Flange Type Oil-Free Bushing

Economical and suitable for the widest range of applications. Completely lubricant/oil free, with superior wear resistance, and no need to worry about running out of oil.

ARF Type Sleeve Bearing with Flange

ARF is a product with flange that is fabricated from rod or pipe material of Berry FL3000. Can also receive axial loads and is available with an internal diameter of 3 mm to 50 mm.

Die Slide Bushing with Flange SAF series

Oilless bearing for high load (flanged bushing type).

[Features]
· Copper based oilless bearing for heavy load applications into which solid lubricant plugs are embedded.
· Choose base metal and plug according to the application and working conditions.
· Maintenance-free, no need to supply oil.
· Excellent wear resistance properties.
· Excellent wear resistance properties are exhibited in applications where oil film formation is difficult such as reciprocating, intermittent, and oscillating motions under conditions of high load and low speed.
· Low friction coefficient.
· Can be used under a wide range of temperatures from low to high.
· Free design of shape and size is possible.
· Superior corrosion and chemical resistance.
· Can be used in river or in sea water, in special liquids where chemical resistance of the metal base and solid lubricant is needed, and in gas where oil supply is difficult.
· Superior impact resistance.

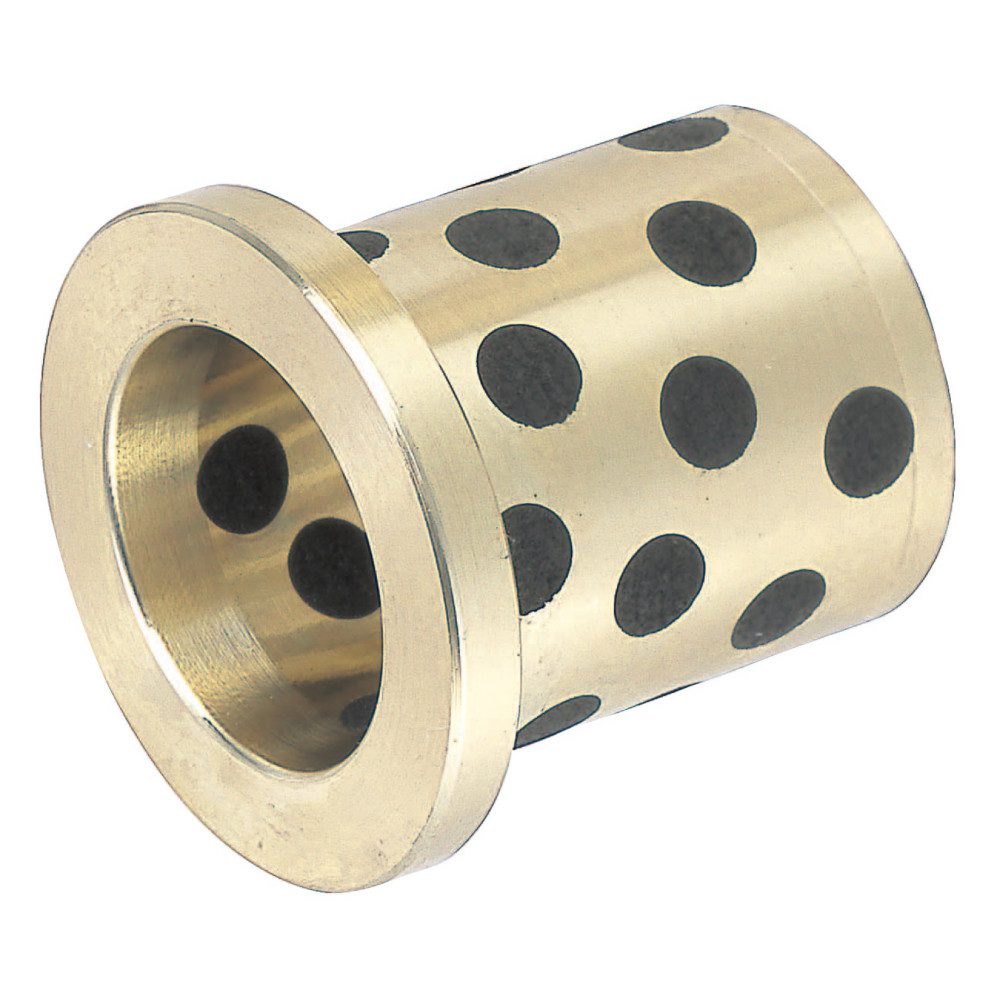

Oil Free Bushings – C-VALUE Products – Copper Alloy, Flanged, Standard

“Consider adopting C-VALUE products for Medium Accuracy / Medium/Low Load / Medium/Low Frequency applications. Flanged, less likely to pull-out.”

Oiles #2000 Flange Bushing (CLF)

[Features]
· Usable in any direction of motion thanks to the dispersion of solid lubricant and with excellent performance even while operating in micro-motion.
· Can be used without oil.
· Superior in load withstand ability, speed property, and abrasion resistance.
· Various sizes of standard products and plates for alteration are available

Oiles #300 Flange Bushing (30F)

Excellent oil film retention and superior abrasion/seize resistance can greatly reduce the number of times lubrication is necessary.

Oiles ♯80 Flange Bushing (80F)

Can be used oil free and provides superior resistance to load and abrasion.

Oiles Glitron F Flange Bushing (77F)

Has a low friction coefficient, and does not experience stick slip. Can also be used in a wide range of temperatures from low to high.

[Features]
· Can be used without any oil.
· Low static friction coefficient on start-up and no stick slips during operation.
· Maintains high abrasion resistance and low friction coefficient, even under high-speed conditions.
· Can also be used in a wide range of temperatures, from low to high.
· Product has superior chemical resistance property and complies with the Food Sanitation Act.
· Mild metals (aluminum, etc.) can be used as mating shafts.
· Excellent in turning machinability.
· Various sizes of standard products and materials for machining are available

Oiles Cermet M Flange Bushing (54F)

Provides high friction resistance when oil film formation is discouraged due to reciprocating motion, intermittent operation, and swing motion.

Oiles Drymet LF (t0.5) Flange Bushing (LFCF)

[Features]
· The thickness of the bearing is as thin as 0.5 mm.
· Now it is possible to use a bearing in a small space where it wasn’t possible before.
· Can maintain a stable friction coefficient since resin that includes special additive is used in the sliding layer.
· Effective as countermeasure against abnormal sounds and friction at no bushing portions.

DAIBEST Bushing with Flange DBS02 series

Oil-retaining bearing (flanged bushing) with self-lubricating characteristics

Oil Free Bushing – Copper Alloy Type with Flange

A copper alloy flanged type oil free bushing designed with cost in mind.

Oil Free Bushing – Multi-Layer Type with Flange

Multi-layer type flanged oil free bushing designed with cost in mind.

Oiles #500SP Thrust Bushing (SPFG)

Demonstrates high performance at high load and low speed movement positions.

[Features]
· Suitable for rotation, swing and reciprocating motions.
· One bushing can bear radial journal load and thrust load at the same time.
· Machinery accuracy can be improved by increasing the flange thickness accuracy

Oiles Glitron SE Flange Bushing (GEF)

Low friction coefficient and superior abrasion resistance. Also offers superior chemical resistance.

Oiles Glitron SE Flange Bushing (GSF)

Low friction coefficient and superior abrasion resistance. Also offers superior chemical resistance.

Oiles HiPlast Flange Bushing (HPF)

Zero-clearance design is made possible with the mounting method that is unique to Hiplast (looseness prevention).

Oiles Luteick E Bushing (LED)

Can be used without oil, and provides conductivity.

Oiles Lutech E-02 Snap Fit Bushing (LES)

Snap-fit type, with excellent assembly workability.

Divided Medal for Flocculator (47H)

To prevent corrosion, it is recommended that hard chrome plating or stainless steel (a shrink-fit sleeve is also possible) is used for the engaging component.

Oiles #500SP1 SL1 Flange Guide Bushing (SGF)

Suitable for rotation, swing and reciprocating motions. Tightening with hexagon socket set screws, etc., is recommended for use.
