Oil free bushings straight, sleeve type – Ống lót không dầu loại thẳng

Oil free bushings straight, sleeve type – Ống lót không dầu loại thẳng

Oil free bushings straight, sleeve type - Ống lót dầu loại thẳng

Oil Free Bushings – C-VALUE Products – Copper Alloy Straight, Standard

Consider adopting C-VALUE products for Medium Accuracy / Medium/Low Load / Medium/Low Frequency applications. The most popular Oil-Free Bushing Shape.

Oil Free Bushings – Copper Alloy Straight Type [JDB-105]

Oil Free Bushings – Copper Alloy Straight, Standard

Oil Free Bushings – Multi-Layer LF Bushings (Dry Bush) – Straight

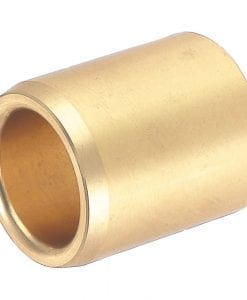

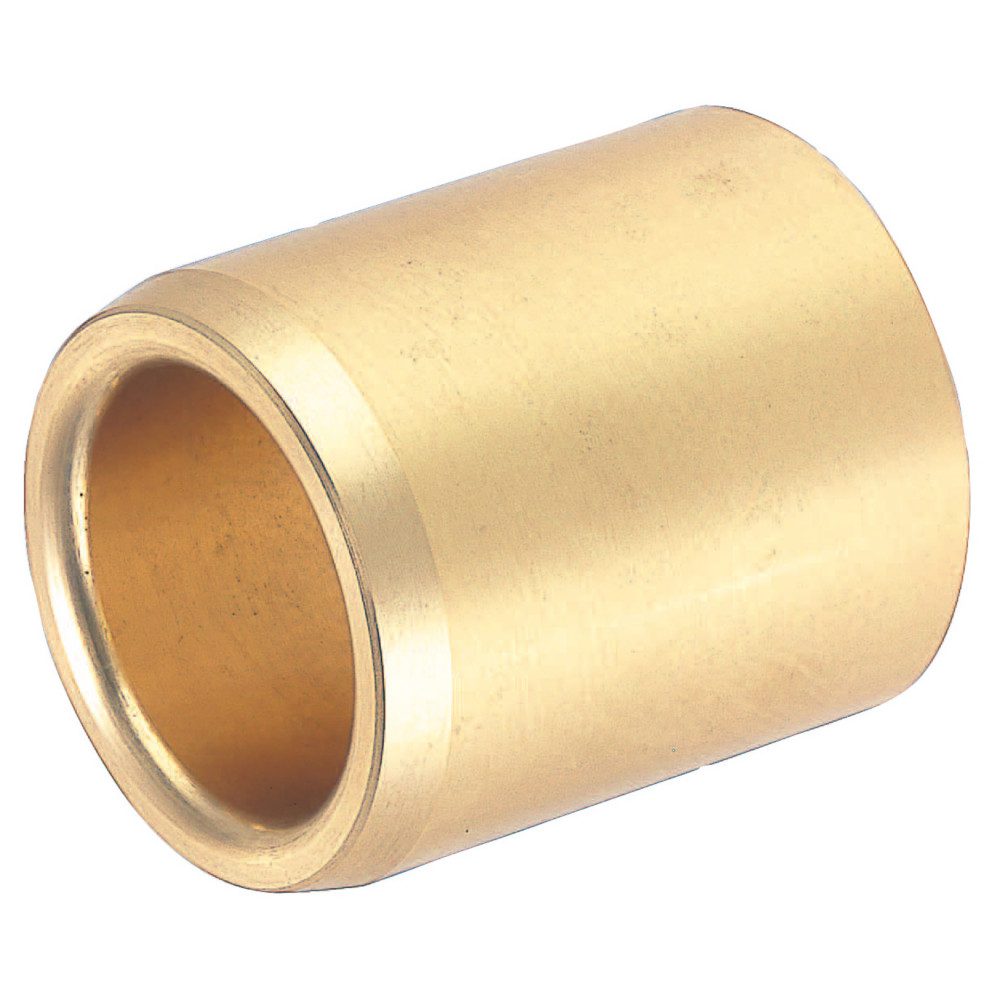

Oil Free Bushings – Bronze, Straight, I.D. F7 O.D. m6

Oiles #500SP Bushing (SPB)

Oiles Drymet LF Bushing (LFB)

Can be used without oil, has thin walls, and is lightweight, and allows for a more compact size.

Oil Free Bushings – Straight (Polyacetal Resin)

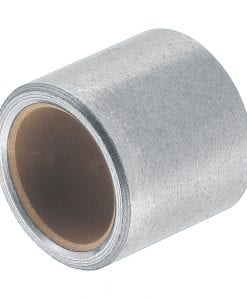

Oil Free Bushings – High Precision

Oil Free Bushings – Copper Alloy Straight / Thin Wall, I.D. F7 O.D. m6

Dydine Bushing DDK05 series

Compound bearing (bushing type ) with low friction characteristics and that optimizes metal properties such as strength and dimensional stability.
This environmentally friendly, lead- free, self-lubricating bearing requires no additional lubricant and does not use any lead at all.
Daidyne DDK05 is a compound bearing that combines a low-friction polytetrafluoroethylene (PTFE) bearing surface with the strength and dimensional stability of a metal backing.

[Features]
· The bearing surface has such a low coefficient of static and dynamic friction so that the surface runs smoothly without lubrication.
· “Stick Slip” doesn’t happen.
· Also safe to use in oil.
· Can be used within a temperature range of -200°C to +280°C.
· Adaptable to operations under high-load, impact load, intermittent operation and reciprocating motion.
· Free from electrostatic induction (when installed, each bearing has an electrical resistance of 1 to 10 Ω per 1cm2).
· Bearing surface has superior chemical resistance and is not affected by solvents such as petroleum and alcohol.
· Will not damage the surface of the engaging component.
· Extended surface life.
· Bearing is lightweight and thin (3 mm at its thickest), so it doesn’t take up much space and has a compact design.
· Minimizes operating noise.

Oiles Drymet ST Bushing (70B)

Can be used without oil, has a low friction coefficient, and has exceptional load resistance.

Oil Free Bushings – Straight (PTFE)

Die Slide Bushing HA series

Oilless bearing for high load (bushing type).

Oil Free Bushings – Straight / Flanged

Oiles Tough Met Bushing (TMB)

Excellent in load withstand ability and heat resistance.

Sintered Oil Retaining Bushing Barefight

Unique material with natural high quality fine graphite powder added. Superior in silent properties.

Oiles #300 Bushing Thin Wall (30B)

Excellent oil film retention and superior abrasion/seize resistance can greatly reduce the number of times lubrication is necessary.

Iglidur J Straight Type Oil-Free Bushing

Low wear, low friction coefficient, low moisture absorbing material. Completely lubricant/oil free, with superior wear resistance, and no need to worry about running out of oil.

DAIBEST Bushing DBS01 series

Oil-retaining bearing (bushing type) with self-lubricating characteristics.

[Features]
· Can be used without oil.
· High-load, high-speed capabilities.
· Stable shape and dimensions and thin-wall construction for compact equipment design.
· Excellent wear resistance in places where oil film formation is difficult due to reciprocating and oscillating motion, frequent start and stop, etc.
· Wide selection of standard parts such as wrapped bushes, thrust washers, slide plates, etc. available.
· Compatible with DDK05 dry bearings and DBX01 bearings.

Oil Free Bushings – Multi-Layer Straight Type

Multi-layer straight type oil free bushing designed with cost in mind.

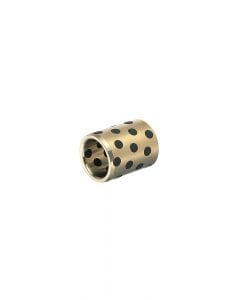

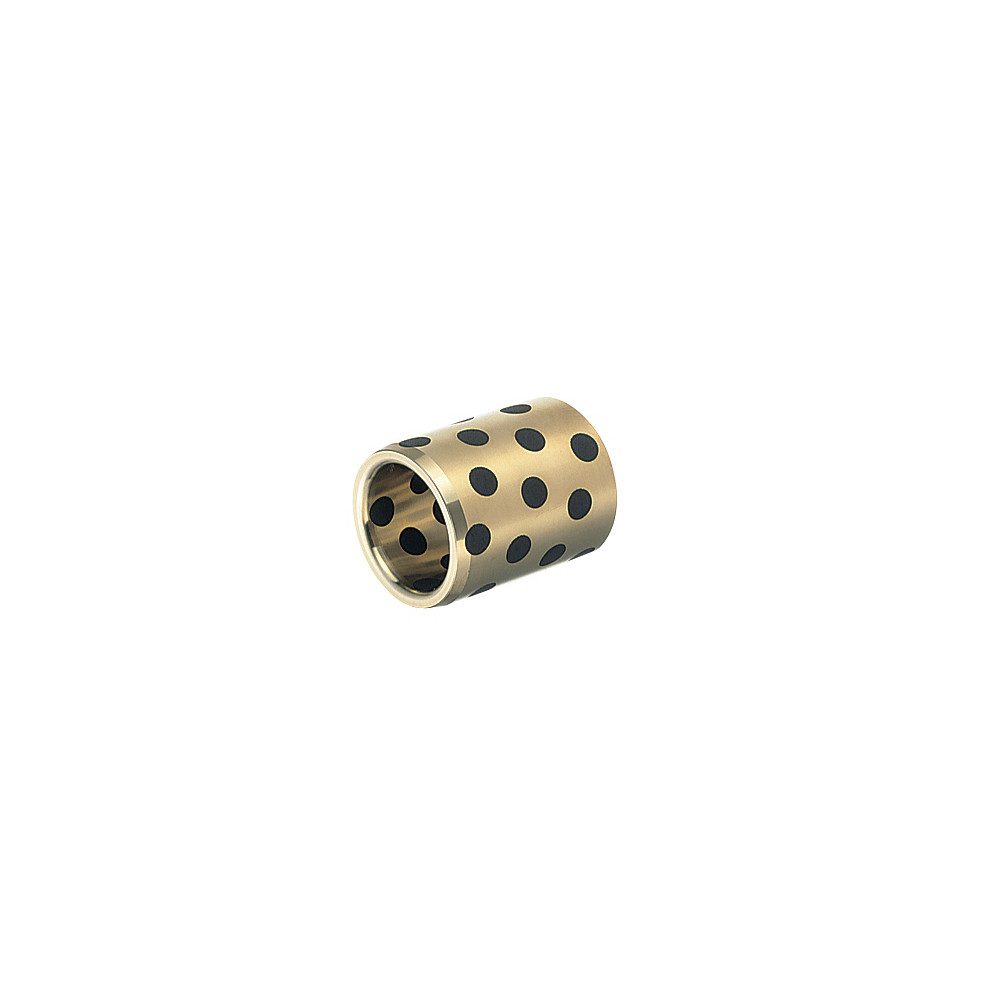

Oil Free Bushings – QStandard / Thin Wall, I.D. E7 O.D. r6

Oiles #500SP1 SL1 Guide Bushing (SGB)

High strength brass alloy guide bushing. Can be used for reciprocating motion. Tightening with hexagon socket set screws, etc., is recommended for use.

Oil Free Bushings with oil Groove

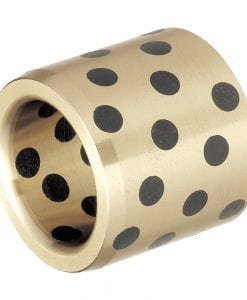

Oil Free Bushings – Copper Alloy Straight, Standard / Thin Wall, I.D. G6 O.D. m6 / Standard I.D. G6 O.D. h6

More precise linear and rotary motion compared to Standard Type can be achieved by keeping the clearance between oil-free bushings and g6 shafts small.

Oiles ♯80 Bushing (80B)

Can be used oil free and provides superior resistance to load and abrasion.

Oiles Cermet M Bushing (54B)

Provides high friction resistance when oil film formation is discouraged due to reciprocating motion, intermittent operation, and swing motion.

Oiles Tough Met D Bushing (TMDB)

Makes excellent durability and stable and low friction coefficient under refueling environment a reality

Iglidur G Straight Type Oil-Free Bushing

Economical and suitable for the widest range of applications. Completely lubricant/oil free, with superior wear resistance, and no need to worry about running out of oil.

Iglidur X Straight Type Oil-Free Bushing

This material has the most outstanding chemical resistance, as well as heat resistance.
Completely lubricant/oil free, with superior wear resistance, and no need to worry about running out of oil.

Oiles #500B1 SL2 Bushing (BCB)

Bronze bearings with embedded solid lubricant. Can be used without oil. Can be used at high temperatures.

ARE/AR type Sleeve Bearing

ARE is a product that achieved zero emissions to the environment by applying auto mold processing to Berry FL3000. AR is a product fabricated from rod or pipe material of Berry FL3000.

Oiles #2000 Bushing (CBB)

A solid lubricant has been dispersed to allow for use in any movement direction and achieves excellent performance in micro movements as well.

Oiles #2000 Bushing (CLB)

Usable in any direction of motion thanks to the dispersion of solid lubricant and with excellent performance even while operating in micro-motion.

Oiles #300 Bushing (30B)

Excellent oil film retention and superior abrasion/seize resistance can greatly reduce the number of times lubrication is necessary.

Oiles #500SP SL-4 Bushing (SPBL)

Demonstrates high performance at high load and low speed movement positions.

Oiles Glitron F Bushing (77B)

Has a low friction coefficient, and does not experience stick slip. Can also be used in a wide range of temperatures from low to high.

Oiles Glitron SE Bushing (GEB)

Various sizes of standard products corresponding to miniature bearings are prepared.

Oiles Glitron SE Bushing (GSB)

Various sizes of standard products corresponding to miniature bearings are prepared.

Oiles Pillow ♯80 (80FL)

The bearing unit is 100% plastic, making it small, lightweight and resistant to corrosion.

Oiles Pillow ♯80 (80UP)

The bearing unit is 100% plastic, making it small, lightweight and resistant to corrosion.

Material Bushing Glitron F (77S)

Has a low friction coefficient, and does not experience stick slip. Can also be used in a wide range of temperatures from low to high.

[Features]
· Choose your PartsNo. according to the appropriate inner and outer diameter

Oiles Fiber Freon FW Bushing (FFB)

Friction surfaces are made from a combination of polytetrafluoroethylene (PTFE) fiber and new material fibers.
In addition, the load-bearing back layer consists of high strength epoxy resin with glass fibers.

Oiles TechMet B Bushing (TCB)

Serviceable without the need for lubrication. Features superior dimensional stability, mechanical strength, and thermal conductivity with a thin, lightweight, and compact design.

Oiles #500HP SL1 Bushing (HPB)

Bears higher loads than the #500SP5. Demonstrates superior wear resistance under high-load and low speed applications.

Oiles #500F SL1 Guide Bushing (FGB)

Guide bushing made of materials embedded with cast iron / solid lubricant. Can be used without oil.

DAIBEST Bushing DBS02 series

Oil-retaining bearing (bushing type) with self-lubricating characteristics.

DAIBEST Bushing DBX series

Pre-lubricated bearing. Be sure to fill with lubricant when installing.

[Features]
· Quiet operation free of squeaking or knocking.
· Low friction characteristics prevents damage to the shaft (mating surface).
· The bearing surface remains virtually wear-free with minimum amount of lubricant (grease or oil).
· The frictional force at startup is extremely low.
· This enables smooth rotation at startup and at low speed under high load conditions.
· Superior non-seizure properties.
· Shaft misalignment tolerance is excellent.
· Can withstand impact loads.
· Excellent load-carrying performance even under oscillating and fretting conditions

Thermalloy D Type DM series

Metal-based oil free bearing (finished bushings) in which a solid lubricant is finely and uniformly dispersed into a bronze base metal.

[Features]
· Bronze alloys are offered as a standard material for Thermalloy type D and also standard parts such as finished bushings. (Lead-bronze products are only made to order. Not compliant with either RoHS or ELV)

Thermalloy D Type GB series

Metal-based oil free bearing in which a solid lubricant (graphite) is finely and uniformly dispersed into a bronze base metal.
D type is a general use grade of Thermalloy, which can be used under a wide range of conditions.
