Rack Gears - Thanh răng

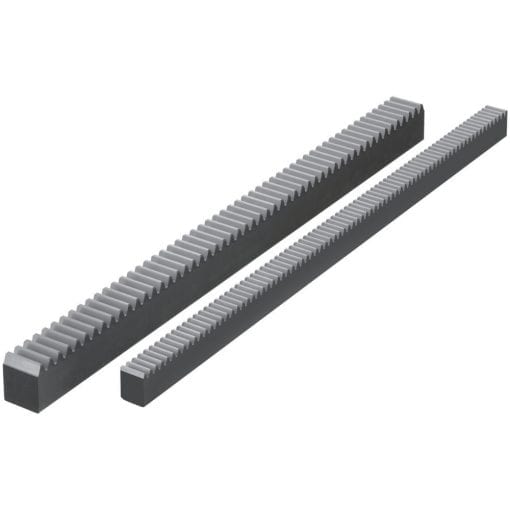

Induction Hardened Rack Gears-Ground, Hole Position Configurable

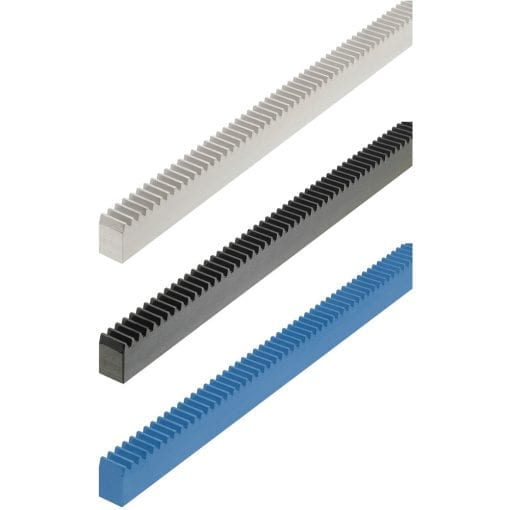

Rack Gears-L Configurable (One End Machined)/Hole Position Configurable Type/Number of Holes Configurable Type

Rack Gears-L Fixed/Economy Type/Both Ends Machined Type

Ground tooth rack

High-precision ground rack gear with low noise. Excellent wear resistance and high-strength of teeth, due to induction hardening. Four-sided ground finish enables high-precision mounting. Both ends machined. Material SCM435. RoHS Compliant.
[Additional processing possible]· As only tooth part is hardened, additional work avoiding teeth section, such mount hole machining can be done.·

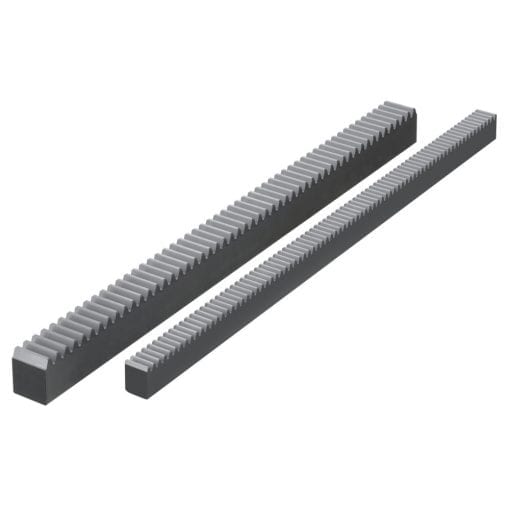

Induction Hardened Rack Gears-Ground

Precision ground tooth CP pinion

JIS N5 high-precision grade ground gear CP rack and pinion. Excellent wear resistance and high-strength of teeth, due to induction hardening.
Directly mountable tapped in 2 points, machined product available. Made from SCM435, 440. RoHS Compliant.
[Additional processing possible]· As only tooth part is hardened, additional work avoiding teeth section such as keyway slotting, tap, hole diameter changes etc. can be carried out.
· A reference surface when carrying out additional work milling hole, tooth part outer circumference, or both side surfaces.

CP Rack with Drilled Mounting Hole

Plastic rack

Gauge for rack connection (ground product)

Conformal Rack Gear

Quenching Gear Rack

Conditioning rack

Both Ends Machined Rack

Compared with conventional SRF rack, low cost and compact square-shaped product with the same tooth width and height. Any number of pieces can be added by processing both ends.

Stainless Steel Rack

Round Rack Gears-L Fixed and Configurable

Round Rack with Pattern

Material is SUS304 for excellent corrosion resistance.
As the shaft outer diameter is ground, the shaft diameter tolerance is h7, with good surface roughness of the shaft outer diameter, contributing to longer life of the sliding part compared with the cut processed part.
RoHS Compliant.

Round rack

Round processed rack with outer diameter tolerance h9, S45C made. Convenient in applications when the rack needs to be used in reciprocal motion. S series with easy to machine shaft part also available.

Stainless steel round rack

Molded flexible rack

Molded flexible rack made by extrusion molding of Duracon®, that can be freely shaped.
Duracon® is a registered trademark of Polyplastics Co., Ltd. in Japan and other countries.

CP Metal Flexible Rack

Machined CP metal flexible rack made of SS400. Continuous length product with total length up to 4000 mm available. Can bend to an arc to some degree to suit base.

CP Taper Rack

CP tapered rack with tooth face processed into a tapered shape, combining CP tapered spur gear and backlash adjustment
