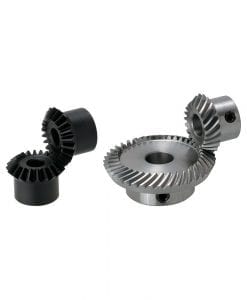

Bevel Gear-Straight Type/Spiral Type/Pressure Angle 20Deg

Bevel Gear

Gear to bend the shaft angle to a right angle, and transmit the rotation with high accuracy. Module size m0.5 to m5.0.

Plastic bevel gear

MC901 made, precision JISB1704 grade 4 plastic bevel gear. High performance plastic bevel gear with excellent quietness due to coniflex teeth form, and can be used without lubrication

Bevel gear with shaft

S45C made, precision JISB1704 grade 3 bevel gear with shaft. Pinion gear has been subjected to thermal refining to increase toughness, and a reduction ratio of 1/5 is achievable in one-step. The shaft part can be machined to any shape.

Stainless steel bevel gear

Bevel gear made with stainless steel SUS303. Recommended for rust-intolerant applications such as food machines, chemical machines, electronic equipment etc.

Molded bevel gear

Duracon® material (M90-44), precision JISB1704 grade 6 molded bevel gear. Low-cost injection molded gear with sizes M0.5 to 1. Oil-less bush is also available when using it with a diameter smaller than the inner diameter.
Duracon® is a registered trademark of Polyplastics Co., Ltd. in Japan and other countries.

Ground spiral bevel gear

SCM415 made, induction hardened tooth part, precision JISB1704 grade 1 ground spiral bevel gear. Since parts other than the teeth are subjected to a carburizing treatment, additional machining can be carried out. High-precision, high-strength, high-speed rotation ground spiral bevel gear. Attention to thrust direction should be given when using.

Finished Spiral Bevel Gear

SCM415 made, induction hardened entire surface, precision JISB1704 grade 4 finished ground spiral bevel gear. After purchasing the shaft hole finished type, immediate installation of this high-strength spiral bevel gear is possible. F shape can be added to suit the mounting flange.

Ground Zero-ru bevel gear

Zeroll bevel gear is a spiral bevel gear with a twist angle less than 10°, for a balanced bevel gear that combines the features of a straight bevel gear and a spiral bevel gear at the same time.

Nissei gear grinding spiral bevel gear

Precision JISB1704 grade 0 ground tooth spiral bevel gear. Carburized and quenched GF finished type with slotted keyway, and a GU type with a bottom hole available. High precision, high strength, high speed rotation.

High Ratio Hypoid Gear

SCM415 made, carburized and quenched tooth part, precision JISB1704 grade 3 spiral miter. A high reduction ratio of 1/15 to 1/200 on the linear axis can be achieved in one step. Since parts other than the teeth are subjected to a carburizing treatment, additional work such as bore hole and shaft part machining can be carried out.

Plastic miter

MC901 made, precision JISB1704 grade 4 plastic miter. High performance plastic gear with excellent quietness due to coniflex teeth form, and can be used without lubrication. As material expands and contracts depending on temperature and humidity, set proper backlash to use.

Miter gear

Gear that is often used to rotate the orthogonal axis

Finished miter

S45C made, induction hardened tooth surface, tooth hardness HRC50 to 60, precision JISB1704 grade 4 finished miter. Reasonably priced, finished miter with slotted keyway, and tapping.

Metal Injection MIM Miter Gear

SUS304L made, small module miter gear with excellent corrosion resistance. Module 0.5/ 0.8/ 1.0. Already tapped in 2 places, so can be installed immediately. RoHS Compliant.

B-LOCK

Miter gear with fastening mechanism. Keyway slot and other machining for shaft not required, making adjustments easy during assembly.
Module 0.8/ 1.0 / 1.5 / 2.0. Excellent corrosion resistance SUS304, S45C series. RoHS Compliant.

Fine-Cut Miter

Induction hardening applied to tooth portion JIS B 1704 grade 2 high-precision spiral miter gear. Slotted keyway, tapped, directly mountable type also available. Ideal for compact design with 19 teeth and 23 teeth. RoHS Compliant.
[Additional processing possible]· As only tooth part is hardened, additional work avoiding teeth section such as keyway slotting, tap, hole diameter changes etc. can be carried out.
