Helical Gear - Bánh răng xoắn

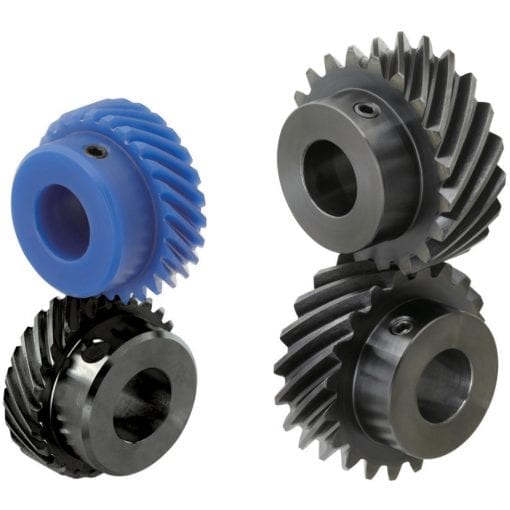

Helical Gear-Straight Bore Type/Straight Bore + Tap/Keyway + Tap/ Pressure Angle 20Deg

Plastic helical gear

Employing lightweight MC901 material, this screw gear can even be used without lubrication. Prone to wear and galling, so different combinations of materials are recommended.

Helical Gear m1 POM White (Polyacetal) Type

Polyacetal helical gear with lower water absorption than nylon gear, and excellent dimensional stability. As helix angle is 45°, can be used for both helical gear (parallel axis) and screw gear (crossed axis). Directly mountable tapped in 2 points, machined product also available. RoHS Compliant.

Spiral gears IS

Gear wide used in application where direction of the rotating shaft changes.

Ground Helical Gear

Thermally refined SCM440 material, with induction hardened tooth surface, before hole standard ground precision JISN6 high strength grade, excellent wear-resistance ground helical gear. Adopting the axis-perpendicular module, the assembly distance can be easily calculated like a spur gear, and replacement with a spur gear of the same specification is possible.

Helical Gear S45C Type

Helical gear with induction hardening performed on teeth part. As helix angle is 45°, can be used for both helical gear (parallel axis) and screw gear (cross axis). RoHS Compliant.

Helical Gear SUS304 Type

Helical gear made from SUS304 for excellent corrosion resistance. As helix angle is 45°, can be used for both helical gear (parallel axis) and screw gear (crossed axis). Directly mountable tapped in 2 points, machined product also available. RoHS Compliant.

Tooth Polishing Helical Gear ZSTP

One rotation of this pinion has an assembling distance and travel distance measurable with integer millimeters, in order to provide maximum convenience to the customer.
