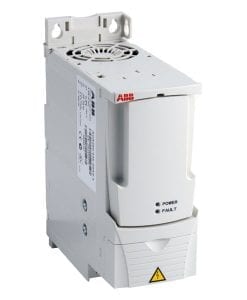

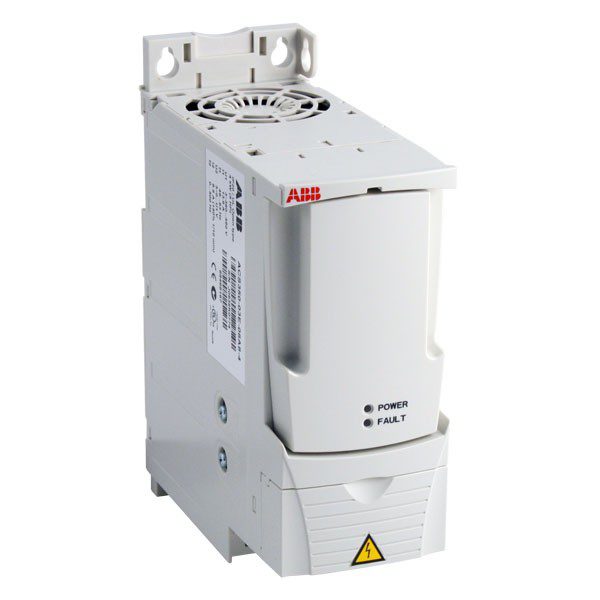

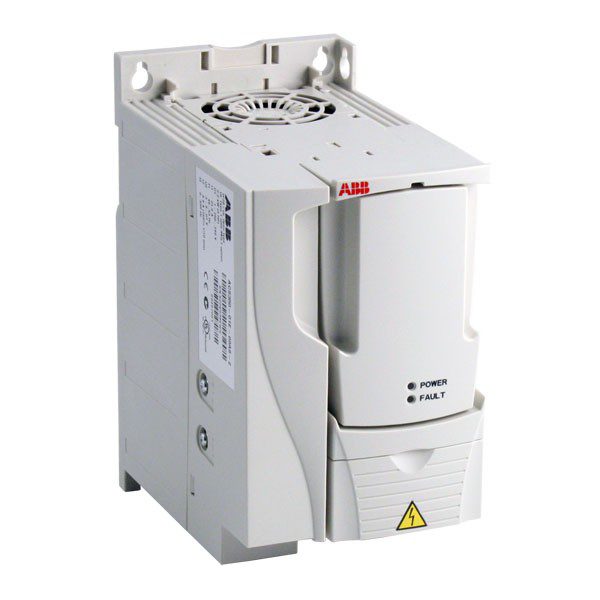

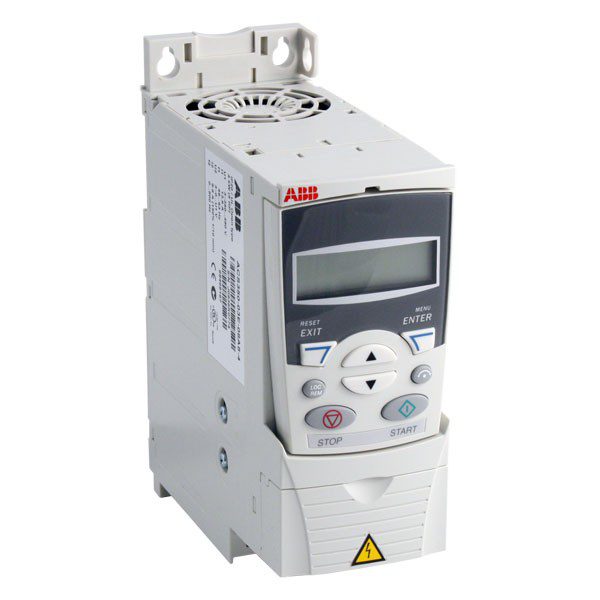

ABB ACS350 230V AC Inverter Drive
ABB ACS350 AC Frequency Inverter for 0.37kW (0.5HP):
ABB ACS350 AC Frequency Inverter for 0.37kW (0.5HP) 230V 3 Ph motor in VxF or Vector control to 2.4A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
R0 Size – 70mm Wide x 144mm Deep x 201mm high (plus cable clamp plate at 38mm) IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/500Hz.
Braking – To 100 Ohm minimum external resistor (not supplied) – use the ‘Which Resistor’ button on this page.
Features – Basic Keypad, 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial).
Input Current – 6.1A.
Input Voltage – 200/240V single phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm.
Heat Loss at max output – 22.7W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is – ACS350-01E-02A4-2+J404, ACS350-01E-02A4-2
ABB ACS350 AC Frequency Inverter for 0.75kW (1HP):
ABB ACS350 AC Frequency Inverter for 0.75kW (1HP) 230V 3 Ph motor in VxF or Vector control to 4.7A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
No Keypad included – see linked products below for ACS 350 equivalent with Keypad.
The ACS350 range does not include a 0.55kW 1ph 230V model so this 0.75kW rated model can be used as a 0.55kW unit.
R1 Size – 70mm Wide x 144mm Deep x 201mm high (plus cable clamp plate at 38mm) IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/500Hz.
Braking – To 56 Ohm minimum external resistor (not supplied) – use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial).
Input Current – 11.4A.
Input Voltage – 200/240V single phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Heat Loss at max output – 26.4W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is – ACS350-01E-04A7-2, ACS350-01E-04A7-2+J404
ABB ACS350 AC Frequency Inverter for 1.5kW (2HP):
ABB ACS350 AC Frequency Inverter for 1.5kW (2HP) 230V 3 Ph motor in VxF or Vector control to 7.5A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
No Keypad included – see linked products below for ACS 350 equivalent with Keypad.
R2 Size – 105mm Wide x 165mm Deep x 202mm high (plus cable clamp plate at 37mm) IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/500Hz.
Braking – To 56 Ohm minimum external resistor (not supplied) – use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial).
Input Current – 16.8A.
Input Voltage – 200/240V single phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Heat Loss at max output – 27.5W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is – ACS350-01E-07A5-2, ACS350-01E-07A5-2+J404
ABB ACS350 AC Frequency Inverter for 2.2kW (3HP):
ABB ACS350 AC Frequency Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF or Vector control to 9.8A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
No Keypad included – see linked products below for ACS 350 equivalent with Keypad.
R2 Size – 105mm Wide x 165mm Deep x 202mm high (plus cable clamp plate at 37mm) IP20 case.
Overload – 150% x 60seconds.
Speed Control Range – 0/500Hz.
Braking – To 56 Ohm minimum external resistor (not supplied) – use the ‘Which Resistor’ button on this page.
Features – 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via ‘Flashdrop’.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial).
Input Current – 21.0A.
Input Voltage – 200/240V single phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 75mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Heat Loss at max output – 27.5W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is – ACS350-01E-09A8-2, ACS350-03E-09A8-2
