Eaton 230V AC Inverter Drive

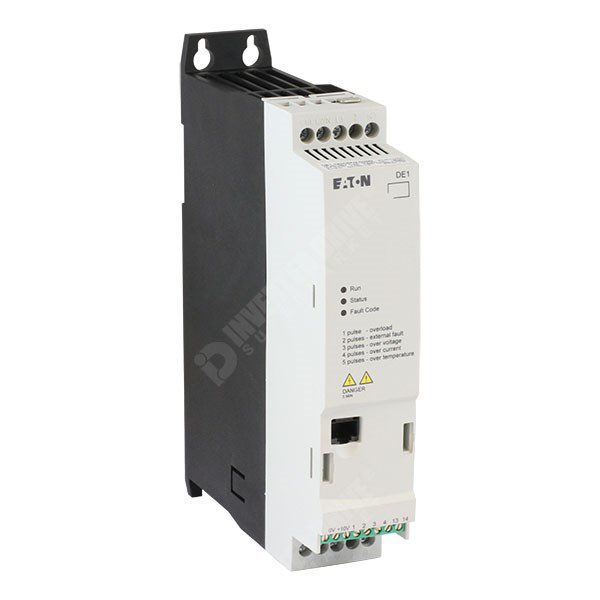

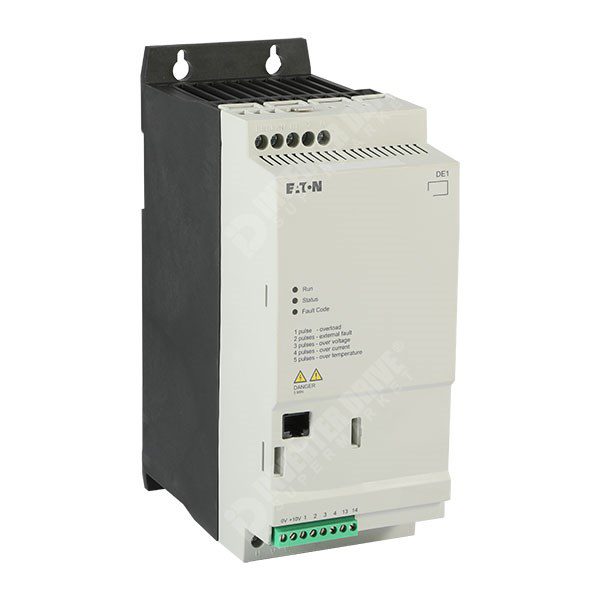

Eaton DE11 Series AC Inverter for 2.2kW (3HP) 400V 3 Ph motor in VxF control to 9.6A. Converts fixed frequency single phase 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor.
Designed for easy installation, the DE11 will operate from its default settings or can configured using an optional plug-in module – see linked products below.
Size FS2: 90mm Wide x 168mm Deep x 230mm High. IP20.
Overload: 150% x 60 seconds every 10 minutes
Overload: 200% x 1.875 seconds every 10 minutes
Speed Control Range: 0-300Hz
1 Analogue Input or 1 Digital Input, 3 Digital Inputs, 1 Relay Contact set (NO; programmable), RJ45 port for RS485 Modbus RTU and CANOpen Communications.
Input Current: 23.2A
Input Voltage: 200-240V Single Phase ±10% at 50-60Hz ±5%
EMC Compliance: IEC EN61800-3 Category C1 (Domestic) for motor cable lengths to 5m, Category C2 (restricted Domestic) to 10m, C3 (Industrial) to 25m. Filters can be disabled using a jumper if required.
Wall mount in clean environment or cubicle mount.
Rated 50°C Ambient.
Ventilation space in front: 15mm, above and below: 75mm, at sides: 0mm.
Heat Loss at max output: 105W
Mounting via 35mm DIN rail or 4 x holes at rear for 5mm screws on 50mm x 220mm centres.
Manufacturer part number is DE11-129D6FN-N20N.
Made in the UK.
