Fairford Electronics soft starters

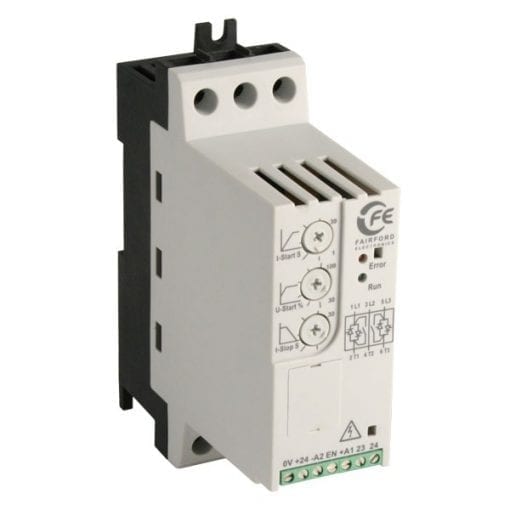

Fairford Electronics PFE-02 Internally Bypassed Soft Starter for a 230/400V 3 Ph motor up to 2.2kW (3HP) at 4.9A.
Rated to suit motors and Trip Class Ratings:
2.2kW, 4.9A at 400V – Trip Class 5
(see Trip Class Guide below for definitions)
Size 1: 45mm Wide x 120mm Deep x 140mm high. IP20.
Input Voltage – 230-460Vac 3 Phase +10% -15% at 50/60Hz ±2%.
Overload:- 300% x 5 seconds at standard rating.
Starts per hour:- 10 (or 5 starts + 5 soft stops) – Standard
Starts per hour:- 60 (or 30 starts + 30 soft stops) – with optional fan
Start Time: 1-30s
Stop Time: 0-30s
Pedestal Voltage:- adjustable from 30% for standard rating to 100% for high breakaway loads.
Requires 24V Control Supply – see linked products below.
Wall mount in clean environment, onto symmetrical DIN rail or cubicle mount.
Rated at 40C Ambient.
Full part number is PFE-02. Sometimes specified as PFE02, PFE-2 or PFE2.
