Schneider soft starters

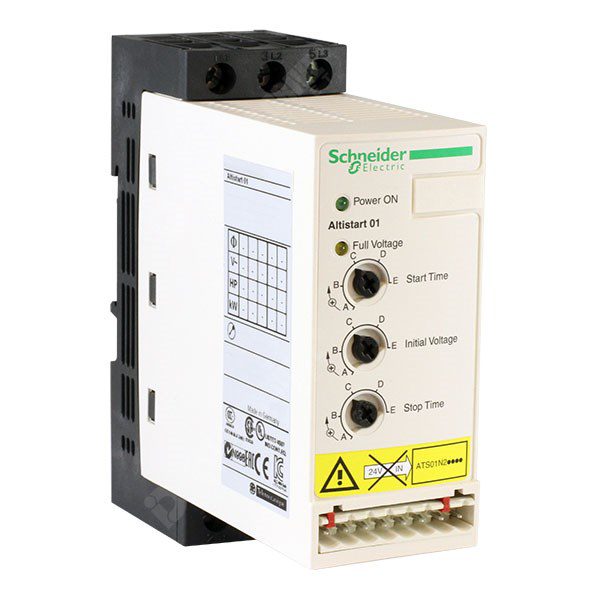

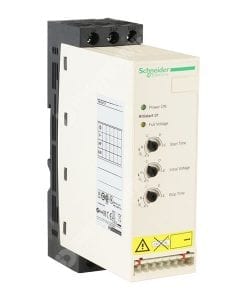

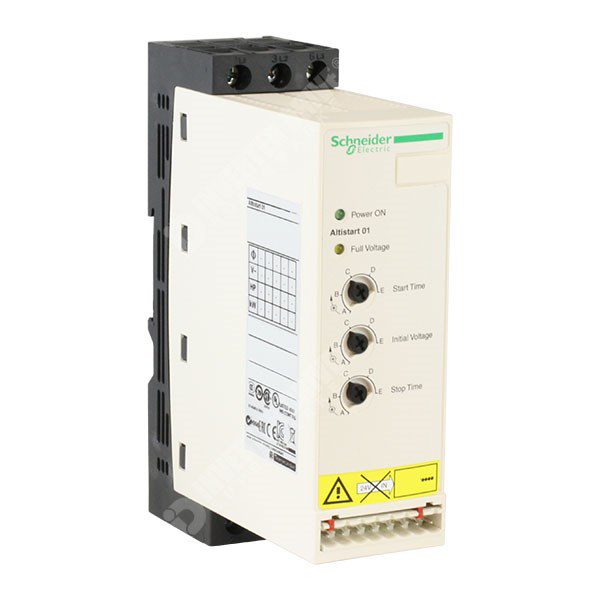

Schneider Altistart ATS01 Digital Soft Start for Three Phase Asynchronous Motors.
Size 2: 45mm Wide x 131mm Deep x 124mm high. IP20.
Input Voltage: 380 to 415V +/-10%, 50/60Hz +/-5%
Motor Power: 1.5 kW at 380/415V, three phase (depending upon application)
Motor Power: 2.2kW at 380/415V, three phase (depending upon application)
Motor Power: 3kW at 380/415V, three phase (depending upon application)
IcL Starter Rating: 6A
Integrated bypass relay.
Start with Voltage Ramp – adjustable from 1 to 10seconds. 1s/100 starts per hour, 10s/10starts per hour, 5s/20 starts per hour. Set by potentiometer.
Potentiometer for adjusting starting voltage threshold according to motor load.
Potentiometer for setting deceleration.
2 logic inputs for Run/Stop commands
1 logic input for the BOOST function
1 logic output to indicate the end of starting
1 relay output to indicate the motor has reached a standstill at the end of the deceleration stage
Number of controlled phases: 2
Power Dissipation: 64 Watts (in transient state)
Power Dissipation: 4 Watts (at full load and at end of starting)
Rated at -10C to 40C Ambient.
Full part number is ATS01N206QN
