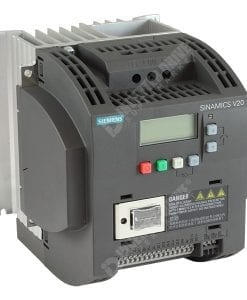

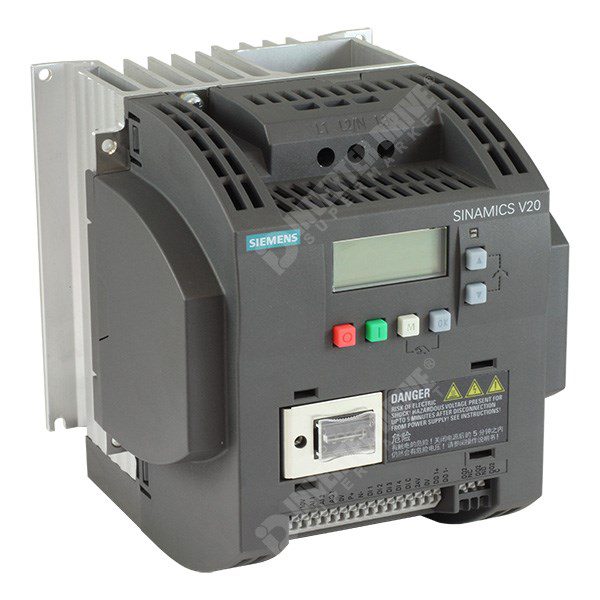

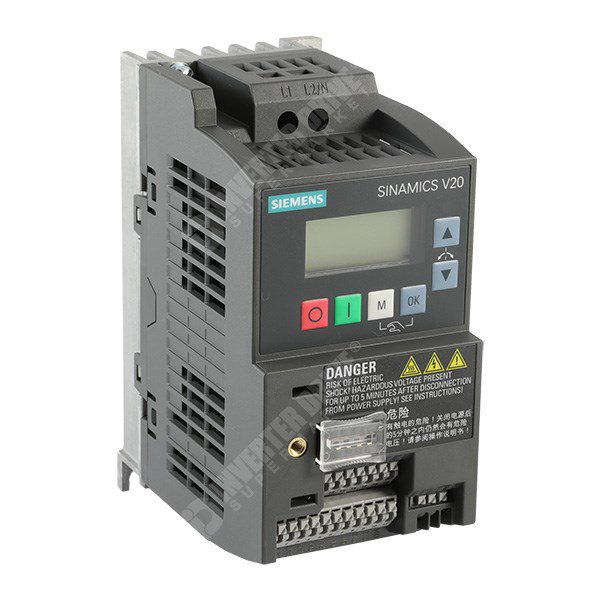

Siemens 230V AC Inverter Drive
Siemens V20 series AC Frequency Inverter for 0.12kW (0.16HP) 230V three phase motor in VxF control to 0.9A. Converts fixed frequency single phase 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor.
Size FSAA: 68mm Wide x 107.8mm Deep x 142mm High IP20.
Cooling: Natural (no fan).
Overload: 150% x 60 seconds followed by 94.5% for 240 seconds (High Overload)
Speed Control Range: 0-550Hz
Braking: via optional Dynamic braking module – see linked products below.
Integrated Keypad, 2 Analogue/Digital Inputs, 4 Digital Inputs, 1 Analogue Output, 1 Digital Output, 1 Relay Contact Set, 1 Expansion Port, DC Bus Terminals, Terminals for Modbus RTU or USS over RS485 Communications.
Input Current: 2.3A
Input Voltage: 200-240V Single Phase ±10% at 50-60Hz ±5%
EMC Compliance: IEC EN 61800-3 Category C1 (Industrial or Domestic).
Rated 40°C Ambient.
Ventilation space in front: [not specified], above: 100mm, below: 100mm, at sides: 15mm or 0mm between V20 drives.
Heat Loss at max output: 14W
Mounting via 2 diagonal holes at rear for M4 screws on 58mm x 132mm centres.
Manufacturer part number is 6SL3210-5BB11-2BV1. Sometimes specified as 6SL32105BB112BV1.
