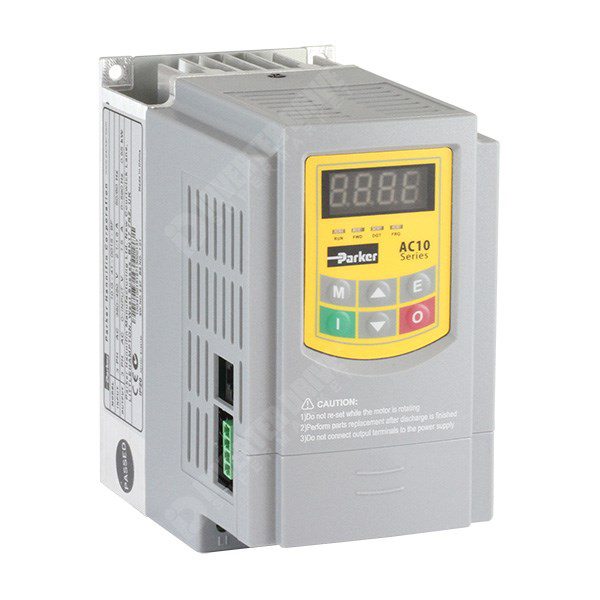

Parker 230V AC Inverter Drive
Parker AC10 series AC Frequency Inverter for 0.37kW (0.5HP) 230V three phase motor in VxF or Sensorless Vector control to 2.5A. Converts fixed frequency single phase 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor or permanent magnet synchronous motor.
Size 1: 80mm Wide x 135mm Deep x 138mm High (excluding 15mm earth clamp). IP20.
Overload: 150% x 60 seconds
Speed Control Range: 0.5-590Hz
Braking (DBr): 100% duty to minimum 60 Ohm, maximum 300 Ohm external resistor (not supplied) – see the Linked Products below or use the ‘Which Resistor’ button on this page.
Integrated Keypad, 2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 1 Digital Output, 1 Relay Contact set, Terminals for Modbus RS485 Communications.

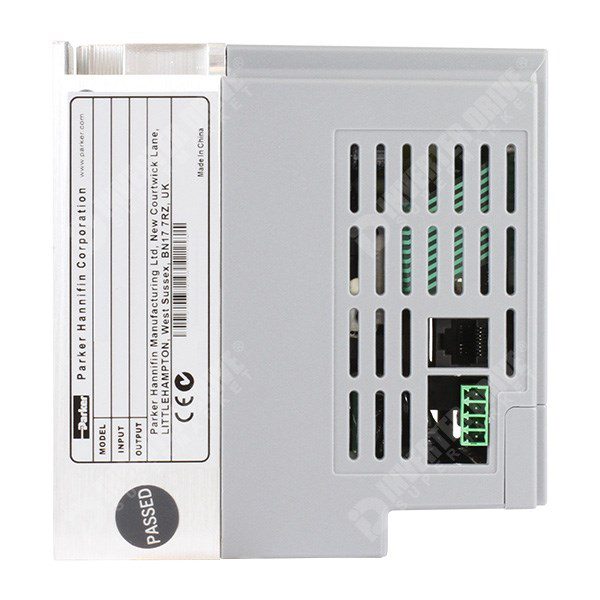

RJ11 port for commissioning using free DSELite PC software (download via link below). Parameter clone port.
Note: For 22kW and below, build standards earlier than 1.02 have 5 Digital Inputs, 1 Analogue Output and RS485 terminals on the front instead of on the side of the unit.
Input Current: 5.8A
Input Voltage: 220-240V Single Phase ±15% at 50-60Hz
EMC Compliance: No integrated EMC filters.
Rated 40°C Ambient.
Ventilation space in front: [not specified], above and below: 150mm, at sides: 50mm.
Heat Loss at max output: [not specified]
Mounting via holes at rear for M4 screws on 70mm x 128mm centres.
Manufacturer part number is 10G-11-0025-BN.
