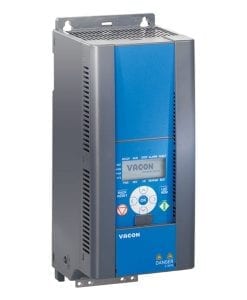

Vacon 230V AC Inverter Drive
Vacon 20 series AC Inverter for 0.25kW (0.34HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 1.7A. Simple to set-up single phase 230V input to three phase 230V for a standard AC Induction motor.
Size MI1 – 65.5mm Wide x 98.5mm Deep x 160.1mm High. IP20.
Weight: 0.55kg.
150% x 60 seconds every 10 minutes, 200% x 2 seconds every 20 seconds
Speed Control Range – 0-320Hz.
Braking – None.
Features – Integral Keypad, 2 x Analogue Input, 1 x Analogue Output, 6 x Digital Inputs, 2 x Relay Contact set, 1 Digital Output (open collector), RS485
Parameter setting from a PC via ‘Vacon Live’.
Input Current – 4.2A.
Input Voltage – 208-240V -15% +10% Single Phase at 50/60Hz ±10%.
EMC Filters to IEC/EN 61800-3 1st and 2nd Environment C2 (Industrial and Domestic)
Wall mount in clean environment or cubicle mount.
Rated at 40°C Ambient.
Ventilation space above – 100mm.
Ventilation space below – 50mm.
Ventilation space at sides – 0mm (drives can be mounted side by side)
Heat Loss at max output – Not specified.
Mounting via 3 x 4.5mm diameter holes at rear on 37.8mm x 147mm centres.
Full part number is – VACON0020-1L-0001-2+EMC2+QPES.
