Toshiba 230V AC Inverter Drive

Toshiba Tosvert VF-nC3 Inverter for 0.37kW (0.5HP) 230V 3 Ph motor in VxF control to 2.4A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.

Size – 72mm Wide x 121mm Deep x 143mm high in IP20 case.

Overload – 150% x 60 seconds, 200% x 0.5 seconds.
Speed Control Range – 0.1-400Hz.
Braking – none (braking module optional).

Features – Front Mounted Potentiometer, 1 x Analogue Input, 1 x Analogue Output, 4 Digital Inputs, 1 Relay Contact set. RS-485 communication port.
Programmable from built-in keypad.
EMC Filters to EN61800-3 to the 1st Environment C1 (Domestic) for cable lengths up to 5m.
EMC Filters to EN61800-3 to the 2nd Environment C2 (Industrial) for cable lengths up to 10m.

Input Current – 5.9A
Input Voltage – 200-240V single phase +-10% at 50-60Hz ±5%.

Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 100mm.
Ventilation space at sides – 50mm.
Heat Loss at max output – 31W.
Mounting onto screw fixings for rear mounting.

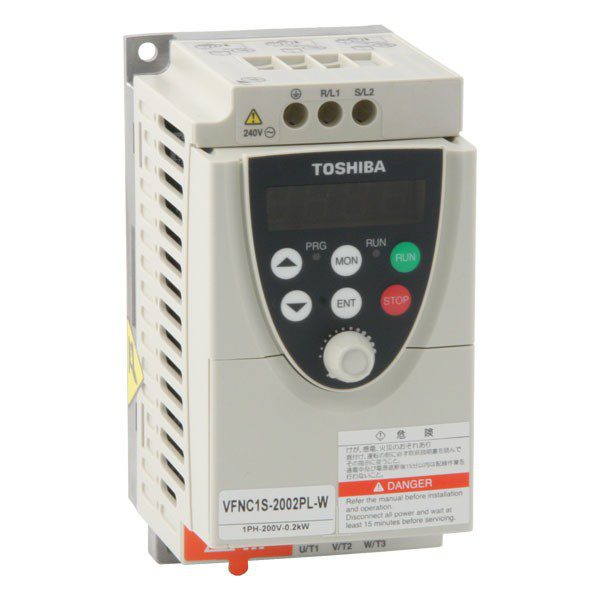

Full part number is – VFNC3S-2004PL. Replaces VFNC1S-2004PL. See linked products below for alternative power ratings.
